The default password for the Toolbox Web-GUI is password. Enter this in the authentication dialog to use the Web-GUI initially and then Tieline highly recommends changing the default password to protect your codec from being tampered with during live broadcasts.

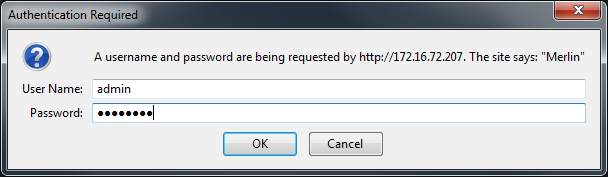

Password login dialog

Toolbox Java Web-GUI Login Dialog

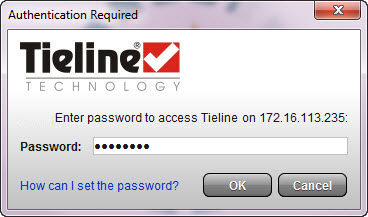

HTML Password login dialog

Toolbox HTML5 Web-GUI Login Dialog on a Merlin Codec



Caution

Caution: Codecs connected to the internet can be accessed by anyone with knowledge of the codec's public IP address. Setting a strong password protects your equipment from being tampered with and jeopardizing live broadcasts.



Creating a New Password

The authentication login password can be changed at any time using the codec keypad and LCD screen. Note that passwords are case sensitive:



1.Press the SETTINGS Settings button button.

2.Use the navigation button to select WebGUI and press the Ok button button.

3.Select Password and press Ok button.

4.Use the KEYPAD to enter a new password and press the Ok button button to save the new setting (Note: there is no character limit for passwords).



If you forget the password for the Toolbox web-GUI then you can always press the SETTINGS Settings button button on the codec and navigate to WebGUI to view the current password and change it if required.



information2

Important Note: The Username in the codec menu is permanently set to admin and cannot be changed; only the Password can be changed.
