Headphone/Aux Output

The codec has a 6.35mm (1/4") RTS stereo HEADPHONE output for monitoring inputs and return audio. If you are using analog inputs or digital inputs you will see audio metering on the PPMs and can monitor it with the headphones.



information2

Important Note: The front panel HEADPHONE output and rear panel HP/AUX output share the same hardware output. This means both are switched and configured together. I.e. both outputs are either a stereo headphone output (default setting), or a balanced mono auxiliary output.



Configure for Headphone and Aux Output

Both the front panel HEADPHONE and rear panel HP/AUX outputs are configured as stereo headphone outputs by default. To adjust this setting:



1.Press the SETTINGS Settings button button.

2.Navigate to Audio and press Ok button.

3.Select HP/Aux Out and press Ok button to toggle between Headphone and Aux Out.

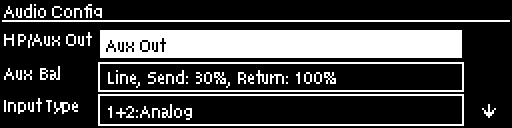

Audio Config - HP-Aux out hilighted

Adjust Headphone Output Settings

1.Press the HEADPHONE headphone button button to display the headphone monitoring adjustment screen.

2.Use the left left arrow button or right right arrow button navigation buttons to adjust the volume level up or down. The screen displays level adjustments in real-time.

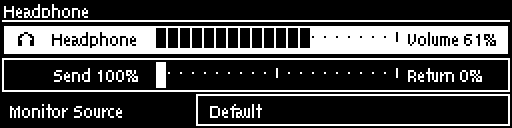

Headphone monitoring screen



3.Press the down down arrow button navigation button to select the Send/Return audio balance and use the left left arrow button or right right arrow button navigation buttons to adjust the balance. The Send/Return audio balance dictates whether the front panel HEADPHONE output and the rear panel HP/AUX output monitors send (input/encoder) audio only, return audio only (decoder audio from a connected device), or a mix of both send and return audio.

4.Press RETURN Back button when you have finished to exit the menu.



Note: Headphone levels can also be adjusted by pressing the SETTINGS Settings button button, navigate to Audio and then HP Vol/Bal and press Ok button.



Adjusting the Monitor Source

In headphone listen mode it is possible to select monitoring sources via HEADPHONE headphone button > Monitor Source > [Select audio Source].

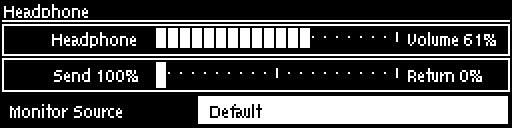

Headphone monitoring screen - Monitor Source



Navigate to the source you want to monitor and press Ok button. Options include:



1.Default: the default factory program headphone mix

2.Audio Stream: monitors the selected codec audio stream.

3.Inputs: monitors the codec inputs (i.e. encoders).



The default headphone mixes for factory programs are displayed in the following table.



Codec Programs

Left

Right

1 x Peer-to-Peer Mono

Inputs 1&2/ Outputs 1&2

Inputs 1&2/ Outputs 1&2

1 x Peer-to-Peer Stereo

Input1 /Output 1

Input 2/Output 2

2 x Mono Peer-to-Peer

Input 1 / Output 1

Input 2 / Output 2

2 x Stereo Peer-to-Peer

Input1 /Output 1

Input 2/Output 2

3 x Stereo Peer-to-Peer

Input1 /Output 1

Input 2/Output 2

2 x Stereo + 2 x Mono Peer-to-Peer

Input 1 / Output 1

Input 2 / Output 2

Stereo + 4 x Mono Peer-to-Peer

Input 1 / Output 1

Input 2 / Output 2

6 x Mono Peer-to-Peer

Input 1 / Output 1

Input 2 / Output 2

Multi-unicast Mono

Inputs 1&2/Outputs 1&2

Inputs 1&2/Outputs 1&2

Multi-unicast Stereo

Input1 /Output 1

Input 2/Output 2

2 x Multi-unicast mono

Inputs 1&2/Outputs 1&2

Inputs 1&2/Outputs 1&2

2 x Multi-unicast stereo

Input1 /Output 1

Input 2/Output 2

3 x Multi-unicast mono

Inputs 1&2/Outputs 1&2

Inputs 1&2/Outputs 1&2

3 x Multi-unicast stereo

Input1 /Output 1

Input 2/Output 2

Multicast server mono

Inputs 1&2

Inputs 1&2

Multicast server stereo

Input 1

Input 2

Multicast client mono

Outputs 1&2

Outputs 1&2

Multicast client stereo

Output 1

Output 2

2 x Multicast server mono

Inputs 1&2

Inputs 1&2

2 x Multicast server stereo

Input 1

Input 2

2 x Multicast client mono

Outputs 1&2

Outputs 1&2

2 x Multicast client stereo

Output 1

Output 2

3 x Multicast server mono

Inputs 1&2

Inputs 1&2

3 x Multicast server stereo

Input 1

Input 2

3 x Multicast client mono

Outputs 1&2

Outputs 1&2

3 x Multicast client stereo

Output 1

Outputs 1&2



Adjust Auxiliary Output Settings

Settings for the auxiliary output audio are adjusted similarly to the HEADPHONE output, except that the output level is fixed at line level. Configure the front panel HEADPHONE output and rear panel HP/AUX output as an Aux Out and then:



1.Press the HEADPHONE headphone button button to display the aux output adjustment screen.

2.Use the left left arrow button or right right arrow button navigation buttons to adjust the Send/Return audio balance.

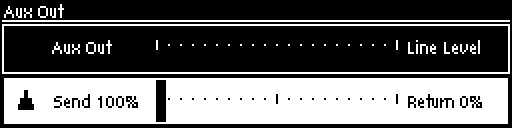

Aux Input adjustment screen



3.Press RETURN Back button when you have finished to exit the menu.



Note: Send/Return balance can also be adjusted by pressing the SETTINGS Settings button button, navigate to Audio and then Aux Bal and press Ok button.
