It is possible to lock a loaded custom program in a codec to ensure the currently loaded program type, e.g. mono, cannot be unloaded by a codec dialing in with a different program type, e.g. stereo. For example, if you require the codec at the studio to always connect in mono, simply load and lock a mono program in the codec. Generally programs will be up or down-mixed by the answering codec to match the loaded program type. In some situations incompatible program types will be rejected.



1.Open the Java Toolbox Web-GUI and click the Settings Configure panel symbol symbol at the top of the screen to display the Settings panel.

2.Click the Options button at the top of the Settings panel.

3.Click the Lock Loaded User Program check-box to lock or unlock a user program in the codec.

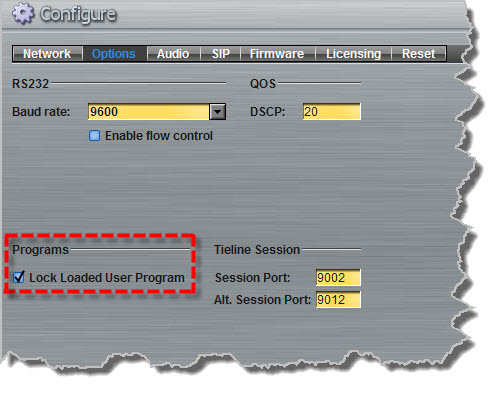

Configure tab - lock loaded user program

4.Click Save Settings to save the new configuration.



information2

Important Note:

•It is only possible to lock custom programs in a codec.

•If Lock Program is enabled and you load a new custom program in the codec, Lock Program remains enabled and locks the most recently loaded custom program.

•A red Padlock symbol appears in the Status section of the Master panel to indicate a program is locked in the codec.
