To view configuration settings for an existing program, or edit settings:

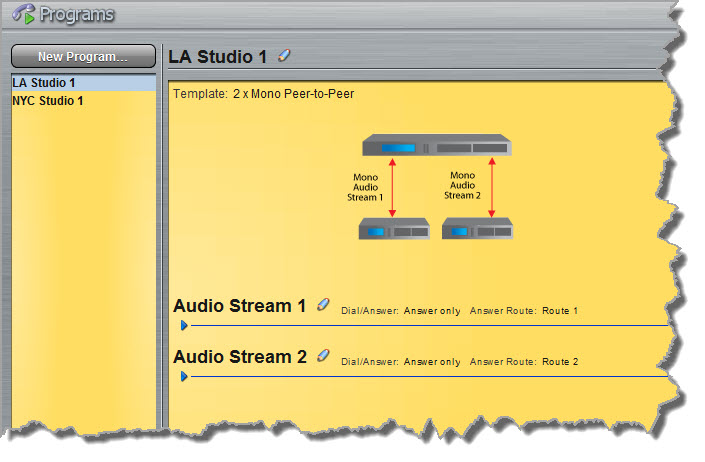

1.Open the Java Toolbox Web-GUI and click the Programs symbol at the top of the screen to display the Programs panel.



2.Click to select a program in the left-hand pane.





3.Click the blue arrow to expand audio stream information and click the Edit symbol to adjust program settings.



4.The program wizard will open at the relevant point to facilitate editing of connection parameters. Click Save Program to store settings.



Deleting Programs

There are two ways to delete a program.



1.Ensure the program you want to delete is not currently loaded in the codec.

2.Click to select a program listed on the left hand side of the Programs panel and then right-click to display menu options.



3.Select and click Delete Program.

4.Click Yes in the confirmation dialog.





5.Alternatively, click Delete Program next to the program name in the top-right corner of the Programs panel.
