Warnings & Safety Information

1.Both appliance power cables must be removed from the device for Power Disconnection.

2.Remove the phone cable from the POTS interface before servicing.

THUNDERSTORM AND LIGHTNING WARNING:

DO NOT USE Tieline codecs during thunderstorms and lightning. You may suffer an injury using a phone, Tieline codec, or any device connected to a phone during a thunderstorm. This can lead to personal injury and in extreme cases may be fatal. Protective devices can be fitted to the line, however, due to the extremely high voltages and energy levels involved in lightning strikes, these devices may not offer protection to the users, or the Tieline codec and equipment connected to the codec.

Secondary strikes can occur. These secondary strikes are induced by lightning strikes and also produce dangerously high currents and energy levels. You only need to be near an object struck by lightning to lead to personal injury or damage to equipment. e.g. if you are located near a lighting tower at a sports facility, water features and drains on golf courses, you may be affected by these secondary strikes.

Damage to personnel and Tieline codecs may occur during thunderstorm, even if the codec is turned off but remains connected to the phone or ISDN system, LAN or the power.

ANY DAMAGE TO A TIELINE PRODUCT CAUSED BY LIGHTNING or an ELECTRICAL STORM WILL VOID THE WARRANTY. Use of this product is subject to Tieline's SOFTWARE LICENSE and WARRANTY conditions, which should be viewed at www.tieline.com/support before using this product.

DIGITAL PHONE SYSTEM WARNING:

DO NOT CONNECT YOUR TIELINE CODEC TO A DIGITAL PHONE SYSTEM. PERMANENT DAMAGE MAY OCCUR! If you are unfamiliar with any facility, check that the line you are using is NOT a digital line.  If the Tieline codec becomes faulty due to the use of a digital phone system, the WARRANTY WILL BE VOID.

WARNING:

HIGH LEAKAGE CURRENT. EARTH CONNECTION ESSENTIAL BEFORE CONNECTING SUPPLY.

If the total leakage current exceeds 3.5 mA, or if the leakage current of the connected loads is unknown, connect the supplementary ground terminal to a reliable ground connection in your facility.

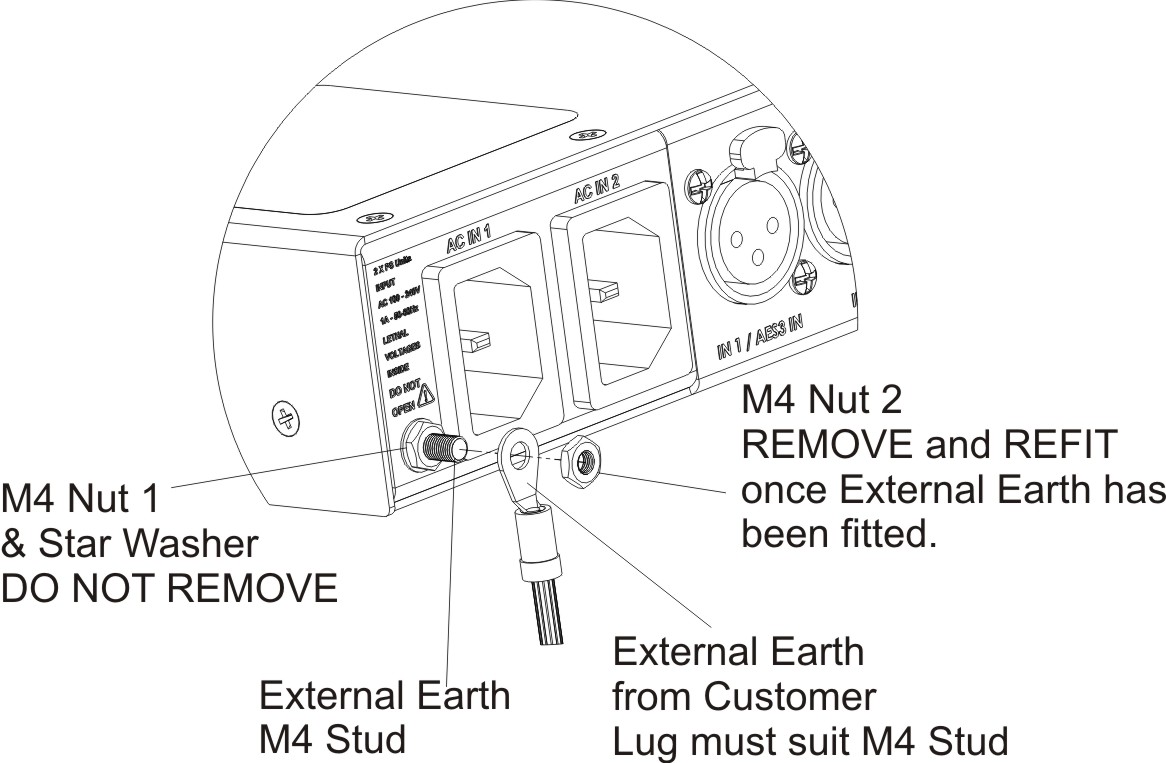

Supplementary ground connection

A supplementary ground terminal is provided on the codec to connect the unit to a ground connection. The ground terminal has an M4 stud with M4 retaining nuts and is compatible with all grounding wires. Remove only NUT 2 to connect your ground wire. The ground wire must have a suitable lug. When refitting NUT 2  ensure that both NUT 1 & NUT 2 are correctly tightened to establish and maintain a proper earth connection.
