1.Both appliance power cables must be removed from the device for Power Disconnection. 2.Remove phone or ISDN cables from the codec before removing a module or servicing.
THUNDERSTORM AND LIGHTNING WARNING: DO NOT USE Tieline codecs during thunderstorms and lightning. You may suffer an injury using a Tieline codec during a thunderstorm. This can lead to personal injury and in extreme cases may be fatal. Protective devices can be fitted to the line, however, due to the extremely high voltages and energy levels involved in lightning strikes, these devices may not offer protection to the users, or the Tieline codec and equipment connected to the codec.
Secondary strikes can occur. These secondary strikes are induced by lightning strikes and also produce dangerously high currents and energy levels. You only need to be near an object struck by lightning to lead to personal injury or damage to equipment. e.g. if you are located near a lighting tower at a sports facility, water features and drains on golf courses, you may be affected by these secondary strikes.
Damage to personnel and Tieline codecs may occur during thunderstorm, even if the codec is turned off but remains connected to the ISDN system, the LAN or the power.
ANY DAMAGE TO A TIELINE PRODUCT CAUSED BY LIGHTNING or an ELECTRICAL STORM WILL VOID THE WARRANTY. Use of this product is subject to Tieline's SOFTWARE LICENSE and WARRANTY conditions, which should be viewed at www.tieline.com/support before using this product.
|
|
SAFETY PRECAUTIONS: •A readily accessible disconnect device shall be incorporated in the building installation wiring. •Due to the risks of electrical shock, and energy, mechanical, and fire hazards, any procedures that involve opening panels or changing components must be performed by qualified service personnel only. •To reduce the risk of fire and electrical shock, disconnect the device from the power line before removing the cover or panels. •This unit has more than one power supply. Disconnect all power supplies before opening to avoid electric shock. Disconnecting one power supply disconnects only one power supply module. To isolate the unit completely, disconnect all power supplies.
SERVICING WARNINGS: •Do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. •All work should be carried out by suitably qualified personnel. •This unit has more than one power supply. Disconnect all power cables before maintenance to avoid electric shock.
HIGH VOLTAGE WARNINGS: •Any adjustment, maintenance, and repair of the opened instrument under voltage must be avoided as much as possible and, when inevitable, must be carried out only by a skilled person who is aware of the hazard involved. •Capacitors inside the instrument may still be charged even if the instrument has been disconnected from its source of supply.

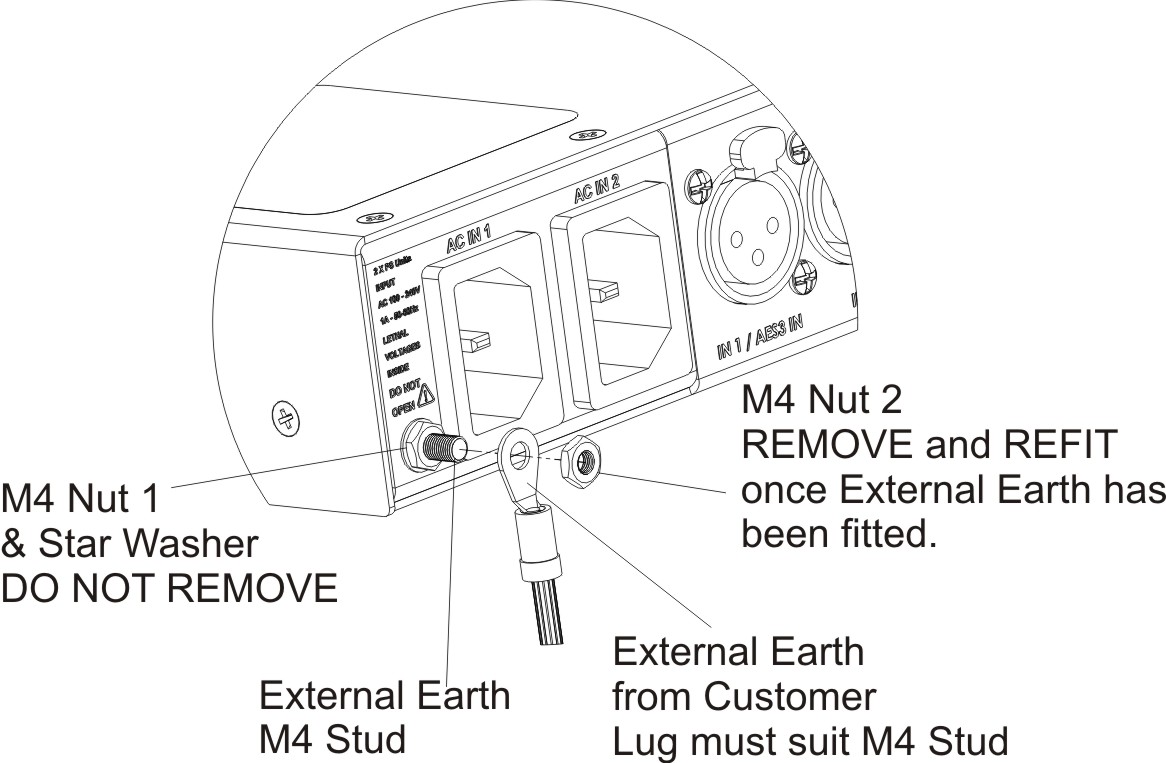

GROUNDING: Before connecting this device to the power line, where required, the protective earth terminal screws of this device must be connected to the protective earth in the building installation.
LINE VOLTAGE: Before connecting this device to the power line, make sure the voltage of the power source matches the requirements of the device. Refer to the device Specifications for information about the correct power rating for the device. |
|
WARNING: To Reduce the Risk of Electrical Shock and Fire 1.This equipment is designed to permit connection between the earthed conductor of the DC supply circuit and the earthing conductor equipment. 2.Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system must therefore be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11). 3.All servicing must be undertaken only by qualified service personnel. There are not user serviceable parts inside the unit. 4.DO NOT plug in, turn on or attempt to operate an obviously damaged unit. 5.Ensure that the chassis ventilation openings in the unit are NOT BLOCKED. 6.Do not operate the device in a location where the maximum ambient temperature exceeds 50°C (122°F), or is below 0°C (32°F). 7.Be sure to unplug both power supply cords from the wall socket BEFORE attempting to service the unit. |
|
Special Notices for North American Users: For North American power connection, select a power supply cord that is UL Listed and CSA Certified 3 - conductor, [18 AWG], terminated in a molded on plug cap rated 125 V, [5 A], with a minimum length of 1.5m [six feet] but no longer than 4.5m.
Special Notices for European Users: For European connection, select a power supply cord that is internationally harmonized and marked “<HAR>”, 3 - conductor, 0,75 mm2 minimum mm2 wire, rated 300 V, with a PVC insulated jacket. The cord must have a molded on plug cap rated 250 V, 3 A.
Interconnection Cabling: Cables for connecting to the unit's RS232 and Ethernet Interfaces must be UL certified type DP-1 or DP-2. (Note: when residing in non-LPS circuit)
Overcurrent Protection: A readily accessible listed branch-circuit overcurrent protective device must be incorporated in the building wiring for the power input as follows: 1.Rated 20 A maximum in Canada and the United States. 2.Rated 13 A maximum in the United Kingdom and EU. 3.Rated 16 A maximum in Australia and other countries.
FUSES: Make sure that only fuses with the required rated current and of the specified type are used for replacement. The use of repaired fuses and the short-circuiting of fuse holders must be avoided. Whenever it is likely that the protection offered by fuses has been impaired, the instrument must be made inoperative and be secured against any unintended operation. |
|
AC units for Denmark, Finland, Norway, Sweden (marked on product): • Denmark - “Unit is class I - unit to be used with an AC cord set suitable with Denmark deviations. The cord includes an earthing conductor. The Unit is to be plugged into a wall socket outlet which is connected to a protective earth. Socket outlets which are not connected to earth are not to be used!” • Finland - “Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan” • Norway - “Apparatet må tilkoples jordet stikkontakt” • Unit is intended for connection to IT power systems for Norway only. • Sweden - “Apparaten skall anslutas till jordat uttag.”
To connect the power connection:
1. Connect the power cables to the power sockets, located on the rear panel of the device. 2. Connect the power cables to the grounded AC outlets.
WARNING: Risk of electric shock and energy hazard. Disconnecting one power supply disconnects only one power supply module. To isolate the unit completely, disconnect all power supplies. |
|
CHINESE SAFETY WARNINGS:
Translation of previous Chinese safety warning: This unit has two power supplies, please be very careful when using, disconnect two power supplies before maintenance to avoid electric shock.
|
|
This device must only be used in not-tropical climate regions. |
|
|
|
This device must only be used at altitude not exceeding 2000 metres. |
|
JAPANESE SAFETY WARNINGS:
Translation of previous warning: Provide an earthing connection.
Translation of previous warning: Provide an earthing connection before the mains plug is connected to the mains. And, when disconnecting the earthing connection, be sure to disconnect after pulling out the mains plug from the mains.
Statement for Class A VCCI-certified Equipment:
Translation of previous Class A VCCI Statement: This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may occur, in which case, the user may be required to take corrective action.
Statement for Class B VCCI-certified Equipment:
Translation of previous Class B VCCI Statement: This is a Class B product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.
|
|
SAFE LISTENING GUIDANCE WARNING: LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE. Over exposure to excessive sound levels can damage your ears resulting in permanent noise-induced hearing loss (NIHL). Please use applicable health and safety authority guidelines on maximum exposure limits. As a rule of thumb, avoid extended periods listening to sound pressure levels (SPLs) of 85dBA or higher. |
End of Life Statement
Tieline hereby declares that all materials, components and products supplied are in full compliance with RoHS & WEE directives. This product must be disposed of according to local laws and regulations. Because the product contains a battery it must be disposed of separately from household waste. Do not incinerate, but take it to a recycling facility.
Warranty and Disclaimer
This equipment manufactured by Tieline is warranted by Tieline against defects in material and workmanship for two years from the date of original purchase. During the warranty period, we will repair or, at our option, replace at no charge a product that proves to be defective, provided you obtain return authorization from Tieline and return the product, shipping prepaid, to Tieline. For return authorization, contact Tieline's US or Australian office (see www.tieline.com).
This Warranty does not apply if the product has been damaged by accident or misuse or as the result of service or modification performed by anyone other than Tieline. With the exception of the warranties set forth above, Tieline makes no other warranties, expressed or implied or statutory, including but not limited to warranties of merchantability and fitness for a particular purpose, which are hereby expressly disclaimed. Use of this product is subject to Tieline's SOFTWARE LICENSE and WARRANTY conditions, which should be viewed at www.tieline.com before using this product.
In no event will Tieline, its directors, officers, employees, agents, owners, consultants or advisers (its “Affiliates”), or authorized dealers or their respective Affiliates, be liable for incidental or consequential damages, or for loss, damage, or expense directly or indirectly arising from the use of any Product or the inability to use any Product either separately or in combination with other equipment or materials, or from any other cause.
Whilst every effort has been made to ensure the accuracy of this manual we are not responsible for any errors or omissions within it. The product specifications and descriptions within this manual will be subject to improvements and modifications over time without notice, as changes to software and hardware are implemented. Tieline takes no responsibility for any damage to equipment attached to the codec.
