The codec has a number of preconfigured mono and stereo dialing profiles available. These can be used to configure the codec quickly with the most popular settings that provide high quality connections using each available algorithm.
If you are unsure about which algorithm to use, see Selecting an Algorithm for more details on each algorithm available in the codec.
1.Press the HOME
button to return to the Home screen.
2.Use the navigation buttons to select Connect and press the
button.
3.Select IP and press the button.
4.Select Tieline session mode and press the button. Note: algorithm profiles are only available for Tieline session connections.
5.Use the down
navigation button to select Setup and press the button.
6.Press the button to select Algor'm.
7.Use the right
navigation button to select Profile.
8.Select the profile you want from the Favorite, Mono or Stereo menus.
|

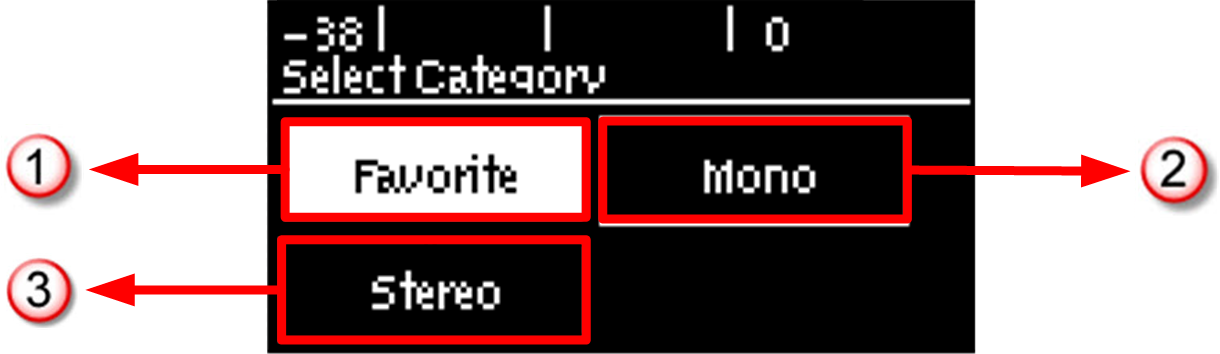

Features |
Codec Home Screen Elements |
1 |
Favorite |
Displays a list of favorite profiles that have been selected manually within the codec by users |
2 |
Mono |
Displays preconfigured mono profiles within the codec |
3 |
Stereo |
Displays preconfigured stereo profiles within the codec |
Adding a Profile into the Favorite Menu
1.Press the HOME button to return to the Home screen.
2.Use the navigation buttons to select Connect and press the button.
3.Select IP and press the button.
4.Select your preferred IP Session mode and press the button.
5.Use the down navigation button to select Setup and press the button.
6.Press the button to select Algor'm.
7.Use the right navigation button to select Profile.
8.Select the profile you want from the All, Mono or Stereo menus.
9.Press the hatch button
to add the profile into the Favorite menu.
Profiles that have been added into the Favorite menu are identified by the hatch (pound) symbol next to their name after they have been selected.
Deleting a Profile from the Favorite Menu
1.Press the HOME button to return to the Home screen.
2.Use the navigation buttons to select Connect and press the button.
3.Select IP and press the button.
4.Select your preferred IP Session mode and press the button.
5.Use the down navigation button to select Setup and press the button.
6.Press the button to select Algor'm.
7.Use the right navigation button to select Profile.
8.Select the profile you want to delete from the Favorite menus.
9.Press the hatch button to delete the selected profile from the favorite menu.
Available Profiles
The following profiles are pre-configured in all Bridge-IT codecs. Note: AAC and aptX Enhanced algorithm profiles are not available unless valid licenses have been installed in the codec.
|
Profiles |
|||
Algorithm |
Mono/Stereo |
Sample Rate (kHz) |
Bit-rate (Kbps) |
|
1 |
AAC |
Mono |
48 |
64 |
2 |
AAC |
Stereo |
48 |
128 |
3 |
AAC |
Stereo |
48 |
256 |
4 |
HE-AAC |
Mono |
32 |
16 |
5 |
HE-AAC |
Stereo |
32 |
32 |
6 |
HE-AAC |
Stereo |
32 |
48 |
7 |
AAC-LD |
Mono |
32 |
48 |
8 |
AAC-LD |
Stereo |
32 |
64 |
9 |
AAC-ELD |
Mono |
32 |
24 |
10 |
AAC-ELDv2 |
Stereo |
32 |
48 |
11 |
Enhanced apt-X |
Mono |
32 (16 bit) |
128 |
12 |
Enhanced apt-X |
Mono |
48 (24 bit) |
288 |
13 |
Enhanced apt-X |
Stereo |
32 (16 bit) |
256 |
14 |
Enhanced apt-X |
Stereo |
48 (24 bit) |
576 |
15 |
G.711 |
Mono |
8 |
64 |
16 |
G.722 |
Mono |
16 |
64 |
17 |
MPEG 1 Layer 2 |
J-Stereo |
32 |
128 |
18 |
MPEG 1 Layer 2 |
J-Stereo |
48 |
192 |
19 |
MPEG 1 Layer 2 |
Mono |
24 |
64 |
20 |
MPEG 1 Layer 2 |
Mono |
48 |
256 |
21 |
MPEG 1 Layer 2 |
Stereo |
32 |
128 |
22 |
MPEG 1 Layer 2 |
Stereo |
48 |
256 |
23 |
Music |
Mono |
32 |
28.8 |
24 |
Music |
Mono |
32 |
48 |
25 |
Music |
Stereo |
32 |
64 |
26 |
Music |
Stereo |
32 |
96 |
27 |
MusicPLUS |
Mono |
48 |
48 |
28 |
MusicPLUS |
Mono |
48 |
96 |
29 |
MusicPLUS |
Stereo |
48 |
96 |
30 |
MusicPLUS |
Stereo |
48 |
128 |
31 |
MusicPLUS |
Stereo |
48 |
192 |
32 |
PCM Mono |
Mono |
48 (16bit) |
768 |
33 |
PCM Stereo |
Stereo |
48 (16bit) |
1,540 |
