The SIP Filter Lists panel allows filtering of SIP URIs and User Agents to provide greater security for your codec connections. For example, add trusted network codecs to the URI Whitelist in this panel and only codecs using these SIP URIs will be able to connect. This is like saying, "if you have the key you can open the door" and is perhaps the easiest way to filter outside access to your codec's "front door".
It is also possible to add SIP URIs to the URI Blacklist and add user agents to the User Agent Blacklist to deny them access to the codec. These blacklists also filter unwanted traffic and increase the likelihood of rejecting unwanted traffic.
Filter URIs and User Agents

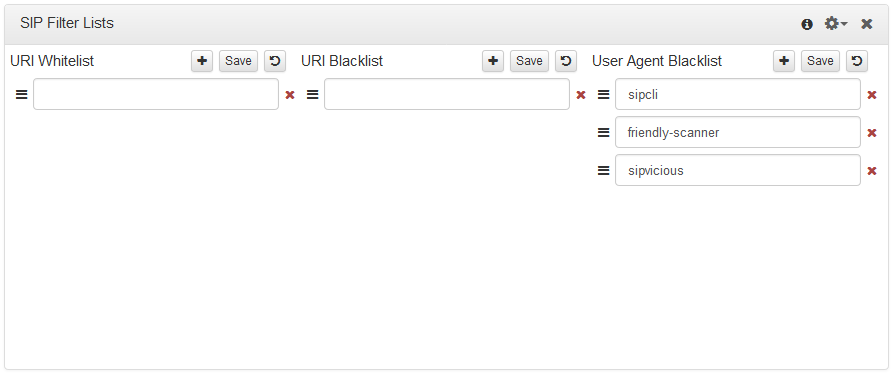

1.Open the HTML5 Toolbox Web-GUI and click Transport in the Menu Bar, then click SIP Filter Lists to launch the SIP Filter Lists panel.
2.Click the Plus symbol
for URI Whitelist, URI Blacklist or User Agent Blacklist to add a new item to the list.
3.Enter the new item in the text box, click to select the check-box and then click Save to store the new setting.
4.Click the Undo symbol
to undo editing and click and drag the List symbol
to shift the position of whitelist and blacklist items.
Using Regular Expressions

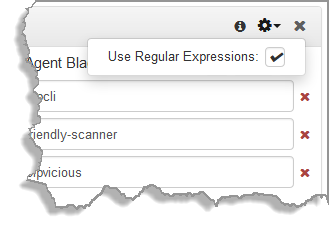

To filter using regular expressions in the SIP Filter Lists panel, click the Options symbol in the top right-hand corner of the panel and then click to select the Use Regular Expressions check-box.
|
Important Note: Regular expressions should not use ^ and $ anchors because searches implicitly try to match anywhere in the line. |
