ViA User Manual v2.0

Navigation: Other Touch Screen Configuration Tasks

Configuring Web-GUI Settings

Scroll Prev Top Next More

Use the Web GUI menu to adjust the Toolbox Web-GUI password, port settings and enable/disable the HTML5 Quick Connect Web-GUI.



1.Press the HOME home-icon button to return to the Home screen, then tap Settings Settings.

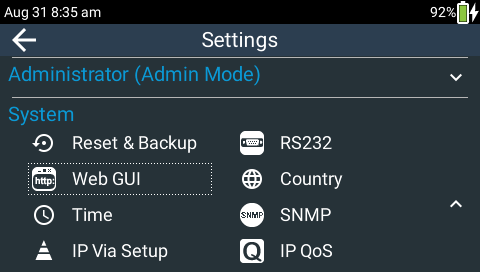

2.Tap to expand the System menu and then tap Web GUI webgui2.



Web-GUI-focus



3.Tap Password to change the Web-GUI login password.



Web-GUI-menu_options

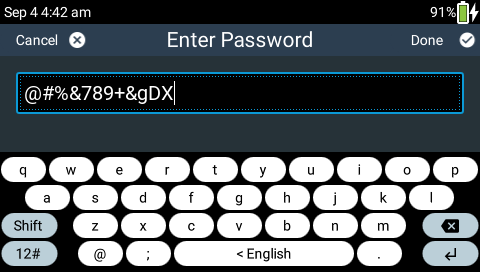

4.Enter a new password and then tap Done in the top right-hand corner of the TOUCH SCREEN.



Web-GUI-new_password

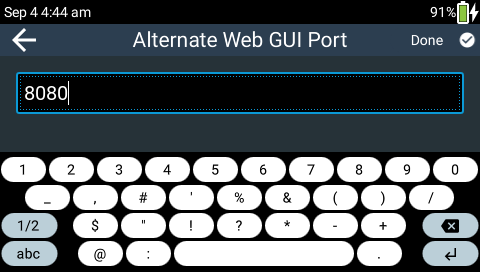

5.Tap Alternate Port to change the alternate port used to access the Web-GUI, then tap Done in the top right-hand corner of the TOUCH SCREEN.



Web-GUI-Alternate_port

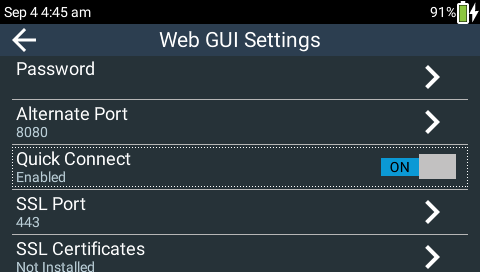

6.Tap the On/Off button to toggle between enabling and disabling the Quick Connect Web-GUI (default setting On). Note: See Using the HTML5 Toolbox Quick Connect for more information.



Web-GUI-Quick_Connect_focus
