To load and dial a program it is necessary to open the Program Loader panel and Connections panel. Use the Program Loader panel to load a program and then manage connecting and disconnecting using the Connections panel.





Loading a New Program

1.Open the HTML5 Toolbox Web-GUI and click Master and then click Program Loader to open the Program Loader panel.

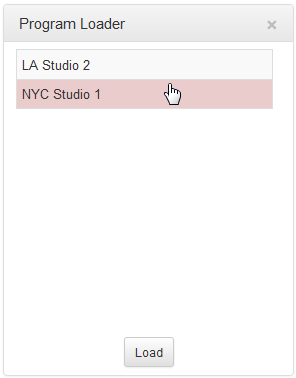

2.Click to select a program in the Program Loader panel and then click Load to load the program in the codec.

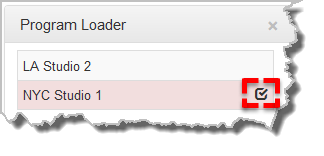

Note: the currently loaded program has the check-box symbol displayed next to its name.



Connecting a Program

To connect audio streams and connections within an existing program there are three options:



1.Click the program Connect/Disconnect symbol and then click Connect; this connects all active audio streams and connections associated with the program.



2.Click the audio stream Connect/Disconnect symbol and then click Connect; this connects all connections associated with this audio stream.



3.Click the connection Connect/Disconnect symbol and then click Connect; this connects an individual audio stream connection.



Disconnect a Program

To disconnect audio streams and connections within an existing program there are three options:



1.Click the program Connect/Disconnect symbol and then click Disconnect to disconnect a program; this includes all audio streams and connections associated with the program.



2.Click the audio stream Connect/Disconnect symbol and then click Disconnect to disconnect an individual audio stream and all associated connections.



3.Click the connection Connect/Disconnect symbol to disconnect an individual audio stream connection.



Unloading a Program

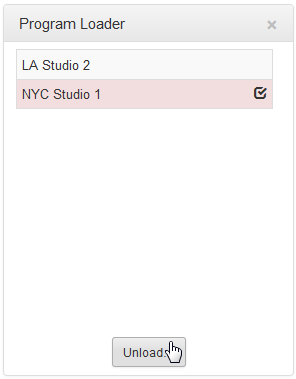

1.Click to select the loaded program in the Program Loader panel and then click Unload to unload the program in the codec.
