It is possible to lock a loaded custom program in a codec to ensure the currently loaded program type, e.g. mono, cannot be unloaded by a codec dialing in with a different program type, e.g. stereo. For example, if you require the codec at the studio to always connect in mono, simply load and lock a mono program in the codec. Generally programs will be up or down-mixed by the answering codec to match the loaded program type. In some situations incompatible program types will be rejected.



1.Open the HTML5 Toolbox Web-GUI and click Settings at the top of the screen, then click Options to display the Options panel.

2.Click the Edit button to configure settings.

3.Click the Lock Loaded User Program check-box to lock or unlock a user program in the codec.

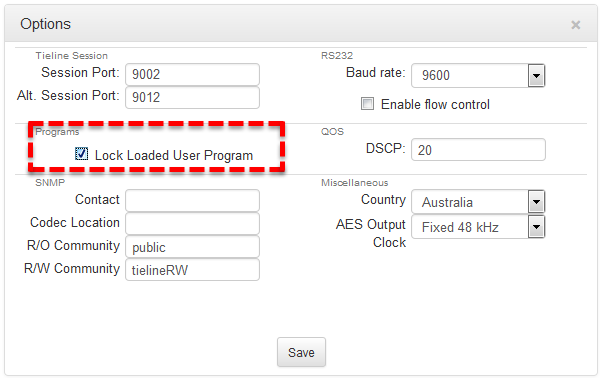

HTML Options - Lock pgm



4.Click Save to store the new configuration.



information2

Important Note:

•A black Padlock symbol appears next to the program name in the Connections panel and in the Program Loader panel, to indicate a program is locked in the codec.

•It is only possible to lock custom programs in a codec.

•If Lock Program is enabled and you load a new custom program in the codec, Lock Program remains enabled and locks the most recently loaded custom program.
