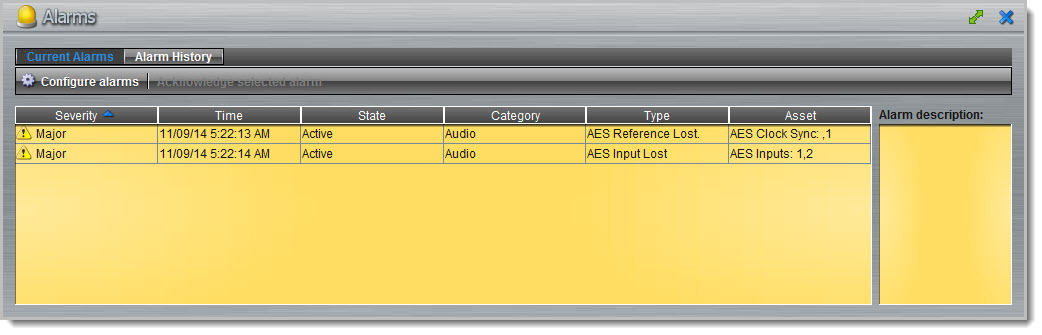

Active codec alarms are indicated in the Current Alarms screen in the Java Toolbox Web-GUI .





The user is alerted to active alarms by:



1.The Alarm Symbol flashing in the top right-hand corner of the Java Toolbox Web-GUI screen.

2.All new alarms being listed in the Current Alarms tab within the Alarms Panel.

3.Other alerts as per Alarm Dissemination settings.

4.The codec front panel ALARM LED flashing red.





Acknowledging Alarms

To acknowledge an alarm:



1.Click to select the alarm in the Current Alarms tab.

2.Click Acknowledge selected alarm.



After acknowledging the alarm:



1.The State will change from Active to Acknowledged.

2.The Alarm Symbol will stop flashing but remain visible in the top right-hand corner of the Java Toolbox Web-GUI screen.

3.The codec front panel ALARM LED will stop flashing and illuminate solid red.

4.The state of other alerts may change, as per Alarm Dissemination settings.







Deactivating Alarms

An alarm is deactivated automatically when the alarm state is reversed. E.g. if power is restored after a PSU Failure alarm, or if audio is restored after an Input Silence alarm.



Deactivating Input Silence Alarms

An Input Silence alarm is activated when the configured audio and duration thresholds have been breached. To recover from this alarm state the codec must detect input audio higher than the failure threshold. When audio at this level is detected, the codec monitors input audio to ensure it doesn't drop below the recovery threshold setting more than 5 times within the nominated Input Silence duration time. The alarm is then deactivated automatically.



Alarm History

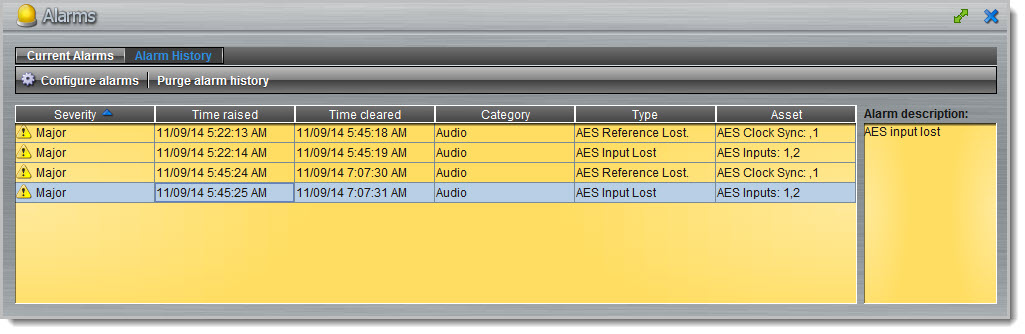

Click the Alarm History tab within the Alarms Panel to display a record of all system alarms which have been raised.





Click the Purge Alarm History button to clear all alarms from the Alarm History tab.
