Selecting Algorithm Profiles

A number of pre-programmed mono and stereo dialing profiles are available for programming the codec quickly without individually selecting algorithms and bit rates etc. These profiles have been programmed with the most popular settings that provide high quality connections using each available algorithm.



1.Press the HOME home button button to return to the Home screen.

2.Use the navigation buttons to select Connect and press the Ok button button.

3.Select IP and press the Ok button button.

4.Select Tieline session mode and press the Ok button button. Note: algorithm profiles are only available for Tieline session connections.

5.Use the down down arrow button navigation button to select Setup and press the Ok button button.

6.Select Algorithm and press the Ok button button.

7.Use the right right arrow button navigation button to select Profile.

8.Choose the profile you want from the Favorite, Mono or Stereo menus.

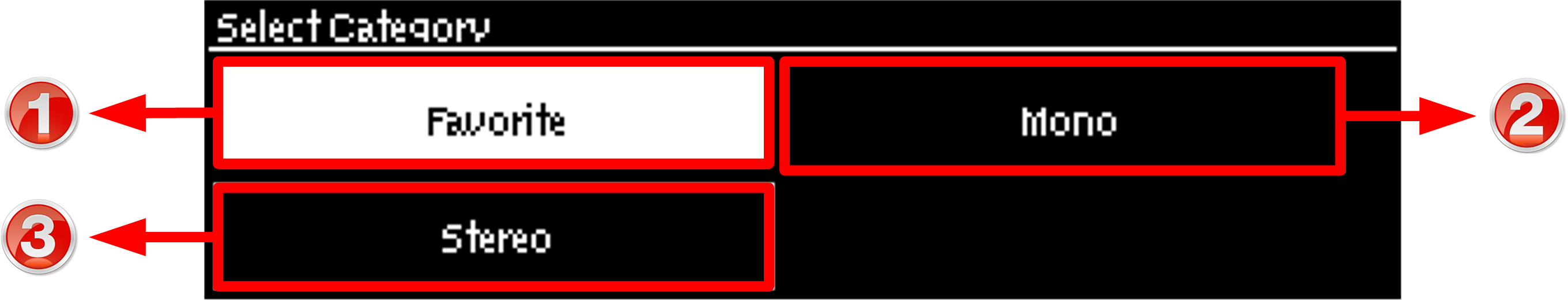

Profiles-screen explanation





Features

Codec Home Screen Elements

1

Favorite

Displays a list of favorite profiles that have been selected manually within the codec by users

2

Mono

Displays preprogrammed mono profiles within the codec

3

Stereo

Displays preprogrammed stereo profiles within the codec

Adding a Profile into the Favorite Menu

1.Press the HOME home button button to return to the Home screen.

2.Use the navigation buttons to select Connect and press the Ok button button.

3.Select IP and press the Ok button button.

4.Select your preferred IP Session mode and press the Ok button button.

5.Use the down down arrow button navigation button to select Setup and press the Ok button button.

6.Press the Ok button button to select Algorithm.

7.Use the right right arrow button navigation button to select Profile.

8.Select the profile you want from the Mono or Stereo menus.

9.Press the hatch (pound) button hatch button to add the profile into the Favorite menu.

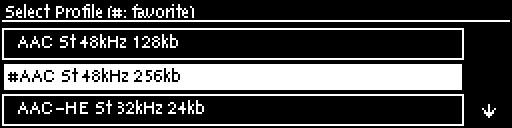

Profiles that have been added into the Favorite menu are identified by the hatch (pound) symbol next to their name after they have been selected.



Profile_screen-favourite



Deleting a Profile from the Favorite Menu

1.Press the HOME home button button to return to the Home screen.

2.Use the navigation buttons to select Connect and press the Ok button button.

3.Select IP and press the Ok button button.

4.Select your preferred IP Session mode and press the Ok button button.

5.Use the down down arrow button navigation button to select Setup and press the Ok button button.

6.Press the Ok button button to select Algorithm.

7.Use the right right arrow button navigation button to select Profile.

8.Select the profile you want to delete from the Favorite menus.

9.Press the hatch (pound) button hatch button to delete the selected profile from the favorite menu.
