Appendix C: Gateway 4 DB-25 Audio Pinouts

 Scroll Prev Top Next More

Gateway 4 DB25 Analog and AES3 Audio Pinouts

In the following images:



•G = Ground

•C = Cold

•H = Hot

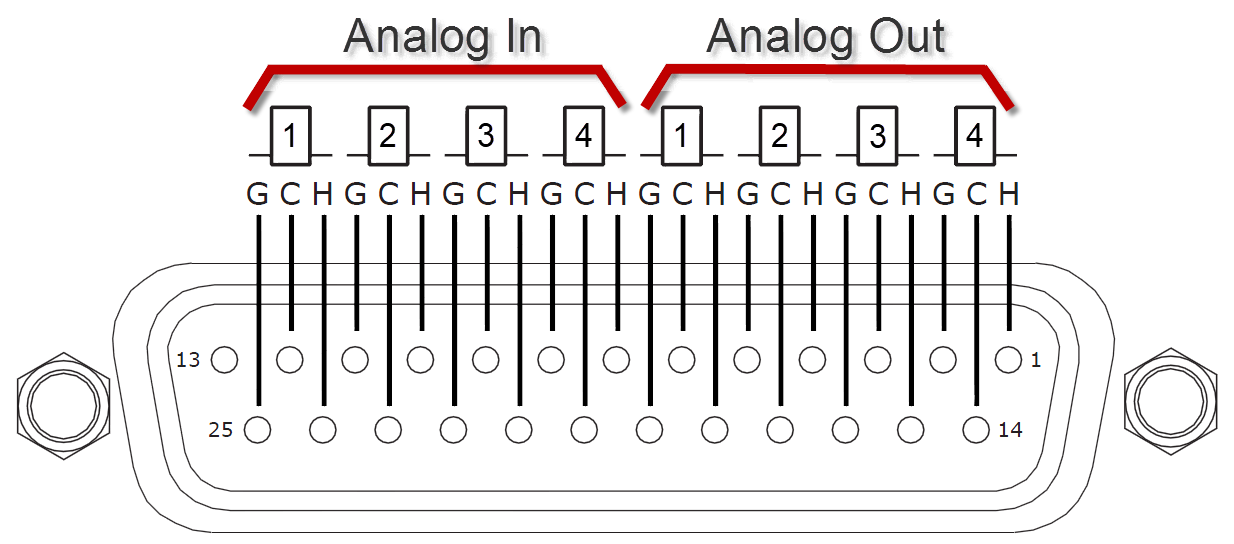

Balanced Analog DB-25 Wiring Pinouts

Tascam DB25 analog pinout Gateway-4

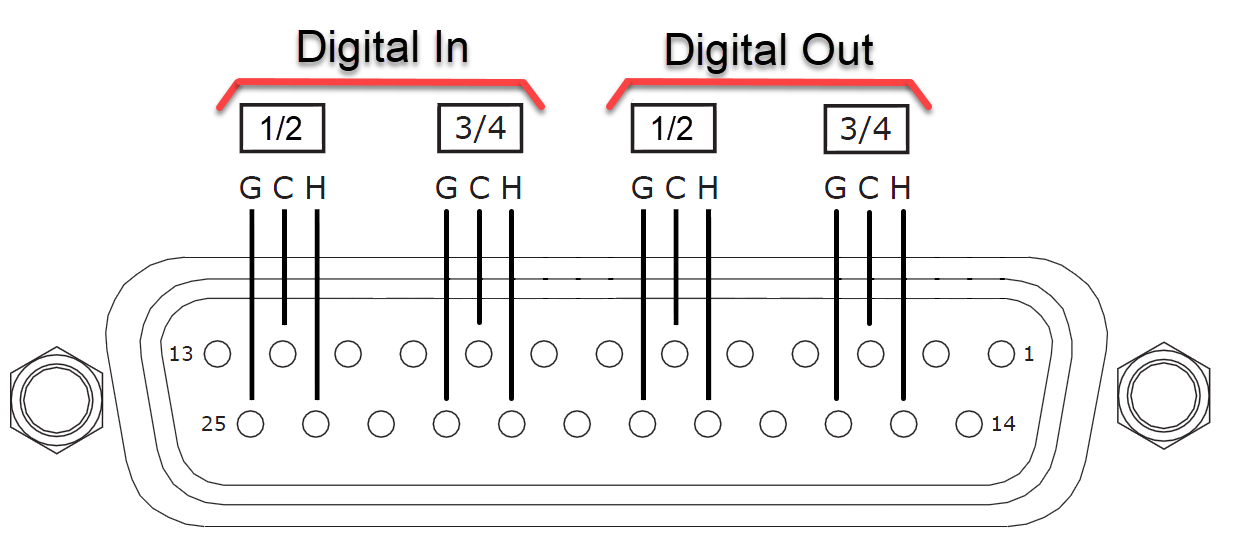

Digital AES3 (AES/EBU) DB-25 Wiring Pinouts

Tascam DB25 digital pinout v3 updated Gateway-4
