1.Attach an Ethernet cable to the LAN1 port on the codec.
2.Press the SETTINGS
button and select Unit Details to view IP address details for the codec.
3.Ensure the PC used to configure the codec is connected to the same LAN.
4.Launch a web browser and type the IP address of the codec into the address bar of the browser, e.g. http://192.168.0.xxx (the last digits are the private address details unique to your codec over a private LAN).

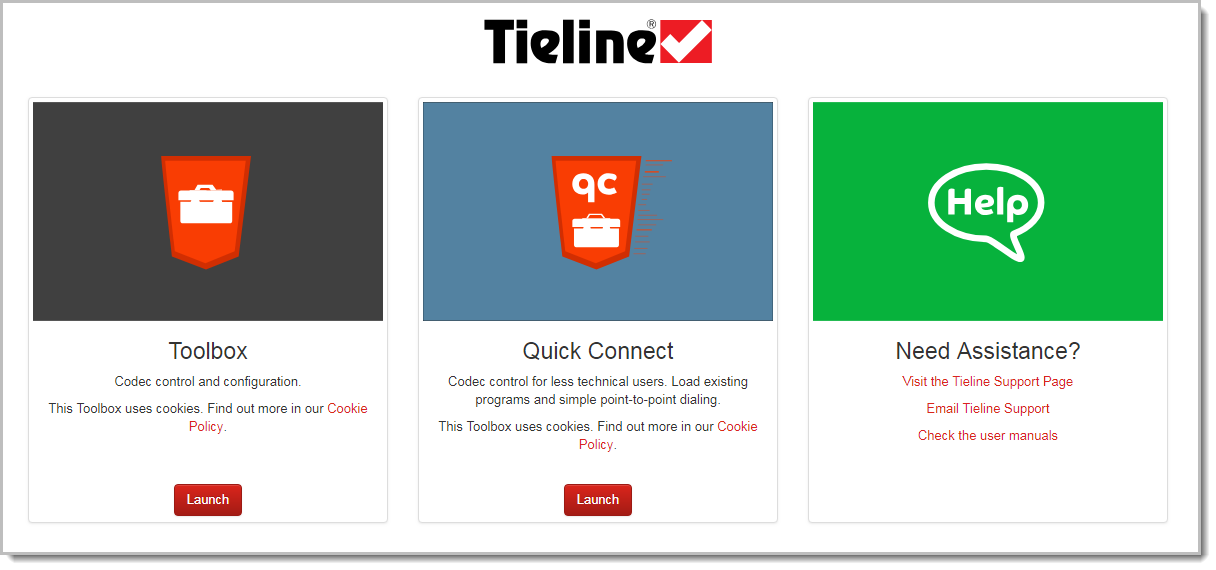

5.Refresh the browser and the Web-GUI landing page will display command and control options.
Launching the HTML5 Toolbox Web-GUI
1.Click to launch the HTML5 Toolbox Web-GUI.

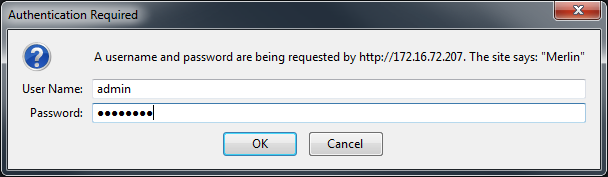

2.When you launch Toolbox for the first time an authentication dialog prompts you to enter the user name "admin" and password "password" to login, then click the OK button. Tieline highly recommends you change the password (see Changing the Default Password). This will provide better network security to maintain reliability during live broadcasts.
Launching the AoIP Web-GUI
To access the AoIP Web-GUI type the IP address of the AoIP interface into a browser. IP address details can be found in the codec via the AoIP Host Network panel accessed via the HTML5 Toolbox Web-GUI AoIP menu. Note: This can only be accessed when a computer is attached to the same AoIP/AES67 LAN as the Tieline codec.
Alternatively, press the SETTINGS button on the codec front panel and use the navigation buttons to select Unit Details and press the
button to discover the AoIP port address details.
Launching the HTML5 Toolbox Quick Connect
1.Click to launch the HTML5 Toolbox Quick Connect Web-GUI.
2.When you launch Toolbox for the first time an authentication dialog prompts you to enter the user name "admin" and password "password" to login, then click the OK button. Tieline highly recommends you change the password (see Changing the Default Password). This will provide better network security to maintain reliability during live broadcasts.
Using the Web-GUI over the Internet
If the codec is connected to the internet and is assigned a public static IP address it is possible to connect and configure it from any PC connected to the internet. If multiple browsers are open on a PC for different codecs it is possible to customize the browser title for simple identification. To configure this setting using the HTML5 Toolbox Web-GUI, click Settings at the top of the screen, then click Options to display the Options panel. Enter the Browser Title and then click Save.
