Redialing a Connection

Press the CONNECT dial button button from any codec menu to redial previous connections (except menus accessed via the Connect > IP screen).

Manually dialed connections are saved as programs - retaining all the dialing and configuration information programmed into the codec. A program is identified in the Recent Program redial screen using either a previously entered name, or by an IP address (manually dialed connections). A multi-unicast connection will display the first IP address dialed and the number of additional connections dialed.

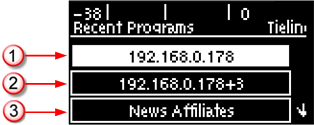

Bridge-IT Redial

	Screen Display	Description
1	Manual peer-to-peer connection	Displays the IP address of an IP connection to a single end-point
2	Manual multi-unicast connection (via web-GUI)	Displays the IP address of first codec dialed and the number of additional codec connections
3	Program name (via web-GUI)	Displays the name of a program configured by the Toolbox web-GUI

Redialing Manually from the Connect IP Screen

From the Home screen select Connect > IP > [Select an IP Session mode] and the codec will assume you want to dial a new ad hoc manual connection. Press the CONNECT dial button button when the Connect IP (or Connect SIP) screen is displayed to retrieve previously dialed IP addresses. Codec settings for any connection dialed from the IP Connect (or Connect SIP) screen will include the current settings in the Setup menu.
