The HTML5 Toolbox Web-GUI can be used to backup and restore codec settings, including:



•Programs containing a variety of connection settings.

•All system settings that have been adjusted to change the factory default codec settings (current runtime settings).



Files can also be used to copy configurations onto other similar codecs. Programs are essentially connection profiles that may include:



•Program, audio stream and connection names.

•IP address, port, algorithm, jitter buffer, FEC and bit rate settings (etc.) for audio stream connections.



Creating Backup Files

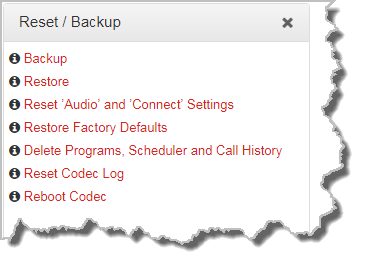

1.Open the HTML5 Toolbox Web-GUI and click Settings at the top of the screen, then click Reset / Restore to display the Reset / Restore panel.



2.Click Backup.

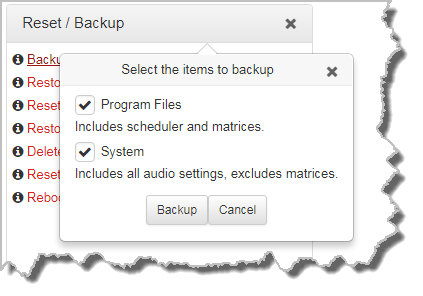

3.Click to select the check-boxes to confirm your backup requirements, then click Backup.





4.Select a location on your PC to save the configuration file. Note: You may need to "allow" your browser to display the pop-up dialog.



Restoring Configuration File Settings

1.Open the HTML5 Toolbox Web-GUI and click Settings at the top of the screen, then click Reset / Restore to display the Reset / Restore panel.

2.Click Restore.

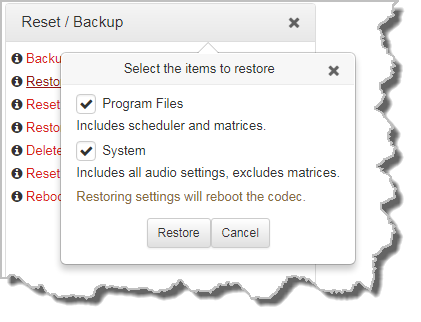

3.Click to select the check-boxes and confirm your restore settings. For example, you could select the Program Files check-box and deselect theSystem check-box if you are only copying programs onto codecs.

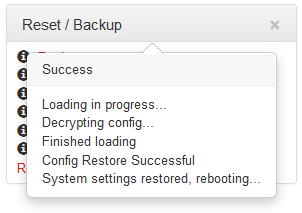

4.Click Restore and select the .tgz file you want to load onto the codec. A Success dialog confirms the files have been restored.





Note: The codec will automatically reboot when restoring system settings.
