Configuring SNMP in the Codec

The codec supports Simple Network Management Protocol (SNMP ) for managing devices on IP networks. To use SNMP you need to configure SNMP Device settings in your codec.

Description of SNMP Settings in the Codec

Features	Operation Button Descriptions
Codec Name	A user-specified alphanumeric identifier which may be used by third-party SNMP software to identify a device. The device name corresponds to the ".iso.org.dod.internet.mgmt.mib-2.system.sysName" SNMP attribute and is completely independent of DNS, NIS, WINS or other device naming and identification schemes, though convention is to use the device's fully-qualified domain name.
Codec Location	A user-specified alphanumeric string which may be used by third-party SNMP software to identify a device. Device location corresponds to the ".iso.org.dod.internet.mgmt.mib-2.system.sysLocation" SNMP attribute.
Contact	A text identifier for the contact person for this managed node, together with information on how to contact this person.
R/O Community	SNMP provides two types of access, namely Read-Only access and Read-Write access. The R/O Community identifier allows Read Only level access.
R/W Community	The R/W Community identifier allows Read/Write level access.

Configuring SNMP Settings in the Codec

1.Open the HTML5 Toolbox Web-GUI and click Settings at the top of the screen, then click Options to display the Options panel.

2.Click in the text boxes to enter SNMP configuration settings.

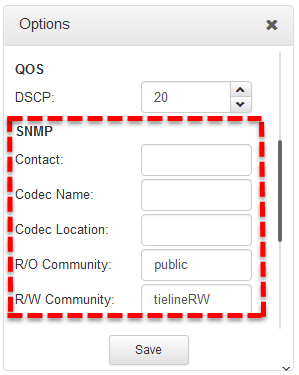

HTML Options - SNMP

4.Click Save to store the new configuration.

MIB Files for SNMP Configuration

Management Information Base (MIB) files are required for SNMP applications to interact with your Tieline codec and interpret SNMP data. The codec supports SNMPv1 and SNMPv2 MIB protocols. The required MIB files can be downloaded from the codec using the following link in a PC web browser connected to the same network as your codec:

•http://<YOUR_CODEC_ADDRESS>/mibs/tieline-mibs.zip

Save the .zip file to your PC and import the contents into the MIB browser you use to manage SNMP-enabled network devices.

information2

Important Note: The codec supports the attributes specified in the MIB-II standard. Please verify that your SNMP software contains the required files as specified in RFC 1213.
