The codec supports Simple Network Management Protocol (SNMP) for managing devices on IP networks.
Description of SNMP Settings in the Codec
Features |
Operation Button Descriptions |
Read Only Community |
SNMP provides two types of access, namely Read-Only access and Read-Write access. The Read Only Community identifier allows Read Only level access. |

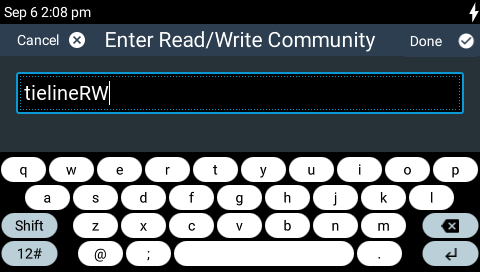

Read/Write Community |
The Read/Write Community identifier allows Read/Write level access. |
Codec Name |
A user-specified alphanumeric identifier which may be used by third-party SNMP software to identify a device. The device name corresponds to the ".iso.org.dod.internet.mgmt.mib-2.system.sysName" SNMP attribute and is completely independent of DNS, NIS, WINS or other device naming and identification schemes, though convention is to use the device's fully-qualified domain name. |
Codec Location |
A user-specified alphanumeric string which may be used by third-party SNMP software to identify a device. Device location corresponds to the ".iso.org.dod.internet.mgmt.mib-2.system.sysLocation" SNMP attribute. |
Contact |
A text identifier for the contact person for this managed node, together with information on how to contact this person. |

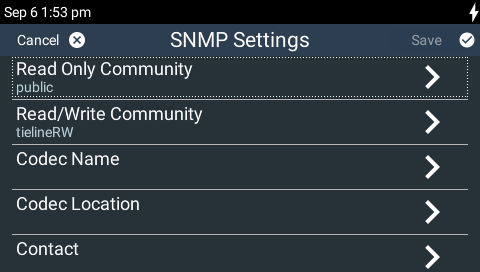

To configure SNMP device settings:
1.Press the HOME
button to return to the Home screen, then tap Settings
.

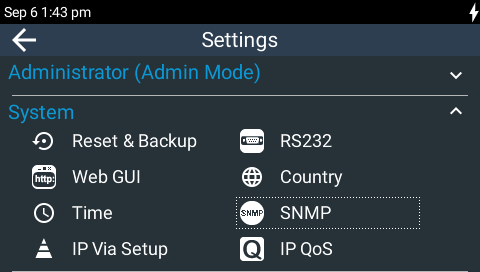

2.Tap to expand the System menu and then tap SNMP
.
3.Tap to adjust each setting in turn.
4.Tap Done in the top right-hand corner of the TOUCH SCREEN to save each new entry.
|
Important Note: For more information on configuring SNMP codec settings using the HTML5 Web-GUI see Configuring SNMP in the Codec. |
