Multiple Audio Streams within Programs

Some programs are created to allow simultaneous audio stream connections with different destination codecs, e.g. 2 x Mono peer-to-peer programs. These programs can only be created using the Toolbox web-GUI.



There are two ways to simultaneously dial multiple audio stream connections within these types of programs:



1.Load the program into the codec via the front panel and dial.

2.Connect to the codec using the Toolbox web-GUI and use the Master panel to load the program and connect.



Dialing Multiple Audio Stream Programs with the Front Panel

1.Press the HOME button to return to the Home screen.

2.Use the navigation buttons to select Programs and press the button.

3.Use the up and down navigation buttons to select the program you want to connect with, then press the CONNECT button to make a connection.

4.The Wait Connecting screen appears briefly and then the Home screen is displayed.



It is also possible to redial the connection, see Redialing a Connection for more information.



Disconnect All Audio Stream Connections

1.Press the red DISCONNECT button on the numeric KEYPAD at any time to hangup all connections.

2.Use the right navigation button to select Yes and press the DISCONNECT button or the button to confirm the disconnection.



Disconnect a Single Audio Stream (not available for multi-unicast connections)

1.Press the HOME button to return to the Home screen.

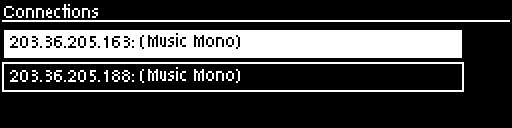

2.Use the navigation buttons to select Cxns and press the button.

3.Use the up and down navigation buttons to select the connection you want to disconnect.





3.Press the red DISCONNECT button on the numeric KEYPAD.

4.Use the right navigation button to select Yes and press the DISCONNECT button or the button to confirm the disconnection.
