Creating a Multicast Server Program

Two different types of multicast programs need to be created when multicasting:



•A multicast server program is used by the broadcasting codec to send multicast IP packets to multicast routers on a network.

•A multicast client program is used by codecs to receive multicast IP audio packets.



information2

Important Notes:

•You cannot edit a program when it is currently loaded in the codec.

•Ensure all connection related settings like the port, algorithm, bit rate (etc) match on both multicast server and client programs or they will not be able to join multicast streaming sessions.

•There is no jitter buffer setting in a multicast server program because it is an encode only program and never receives audio packets.

•Genie Distribution codecs are capable of creating up to 3 simultaneous multicast connections, however only one can be configured using the front panel of the codec. The default UDP audio port is 9000 for a multicast server program configured via the codec front panel.

•You can lock a loaded custom program in a codec to ensure the currently loaded program cannot be unloaded by a codec dialing in with a different program type.

•Always dial the multicast server codec connection first before connecting multicast client codecs.

•Multicast client codecs will display return link quality (LQ) only. The Return reading represents the audio being downloaded from the network locally. Multicast server codecs do not display LQ readings.

•Forward Error Correction (FEC) is not available for multicast connections.

•It is not possible to send auxiliary data using multicast connections.

•It is not possible for a G3 codec to receive multicast IP audio streams.

•To learn more about programs see the section titled About Program Dialing.

•See Toolbox web-GUI documentation for more detailed information about Configuring Multicast Server Programs or Configuring Multicast Client Programs



1.Press the HOME home button button to return to the Home screen, select Connect > IP > Sessionless and press the Ok button button.



Connect screen IP hilightedt



2.Select Multicast Server to configure a server codec program.

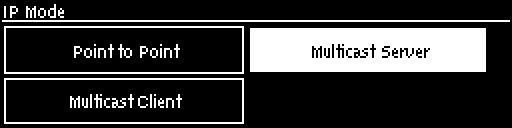

Multicast - select Multicast server



3.Use the RETURN Back button button to delete any numbers already entered, then use the numeric KEYPAD to enter the multicast IP address you want to dial, using the star button or hatch button buttons to enter the periods in the IP address. Note: The same multicast address and audio port must be used for both the server and client programs. Next, press the down down arrow button navigation button to select Setup and press Ok button.

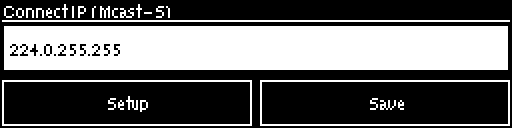

Multicast - address with Setup highlighted



4.Press the down down arrow button navigation button to select Algorithm and press Ok button.

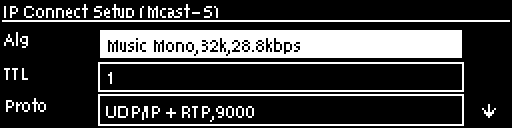

Multicast - Alg 1



5.Use the navigation buttons to select an algorithm profile or manually choose algorithm settings, then press Ok button.



Multicast - Alg 2



6.Navigate to and select TTL and enter the IP Time-To-Live value, then press Ok button. The TTL value you need to use is dependent upon your network infrastructure. Please consult your network administrator if you are unsure about how to configure this setting.

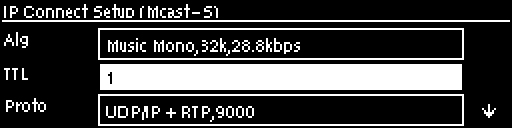

Multicast - TTL highlighted



7.Select Protocol to select the audio protocol and adjust the Send Audio Port. Select UDP/IP +RTP for RFC compliant IP streaming. Press Ok button to save settings.

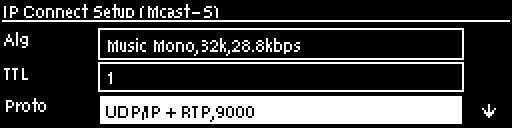

Multicast - protocol and port setting





8.If required, enable Auto Reconnect and navigate to Via to specify which IP streaming interface is used to dial this connection, e.g. Primary (port ETH1) or Secondary (port ETH2). Note: By default Any will select ETH1 if it is available and ETH2 if it is unavailable.

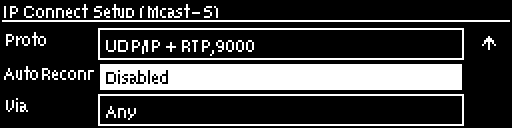

Multicast - Auto Reconnect highlighted and Via



9.Press the RETURN Back button button when configuration is complete to navigate backwards to the Connect IP screen that the multicast IP address was entered into.



information2

Important Note: At this point you can navigate to Save on the Connect IP screen and press Ok button to save the settings as a custom program for subsequent recall and dialing. Use the numeric KEYPAD to give the program a name and press Ok button to save the program. A confirmation message is displayed after the program is saved.

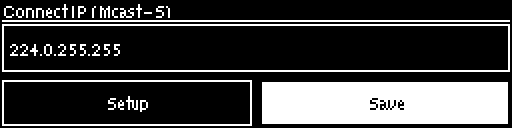

Multicast - Save



Connecting a Multicast Program

1.After you have created multicast server and client programs on your codecs you can dial multicast connections. First select the multicast server program you want to use on the server codec:



a.Press the HOME home button button to return to the Home screen.

b.Use the navigation buttons to select Programs and press the Ok button button.

c.Use the up up arrow button and down down arrow button navigation buttons to select the multicast server program you want to connect with, then press the Ok button button to load the program.

d.Press the CONNECT connect button button to make a connection.



2.Select and load the multicast client program on each of the multicast client codecs and dial the multicast IP address to begin receiving multicast audio packets.



You can navigate to Cxns on the Home screen to view a codec's connection Status, then press Ok button to view connection statistics for IP packets being sent over the connection.
