Gateway and Gateway 4 Manual v1.5

Dynamic DNS (DDNS) can be configured in the codec to allow the use of a host name to connect when a dynamic IP address is used. To facilitate this a DDNS service is used to register a device's IP address to a host name, allowing a remote codec to dial to a host name. The host name will be updated automatically periodically as required, or when the dynamic IP address changes.



1.Press the SETTINGS Settings_button button.

2.Use the navigation buttons to select IP Options and press the Ok_button button.



Settings-IP_options

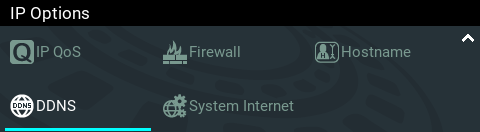

3.Navigate to IP Via Setup and press the Ok_button button.



DDNS-Selected

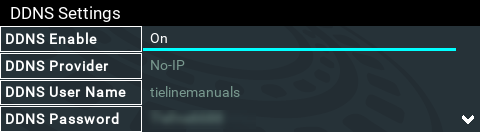

4.Select and configure each DDNS setting and enable DDNS. The codec is then able to accept a call using the specified DDNS Host Name.



DDNS-Settings



information_symbol

Important Note:

Supported DDNS providers are listed in the DDNS Provider drop-down menu.

Devices should be DDNS registered to public IP addresses.

The codec will utilize the System Internet interface order when contacting DDNS service providers.

Does not support remote G3 codecs connecting in this mode.

DDNS Host Name settings are unrelated to the Hostname setting accessed via the Options panel under Settings.
