Load and Dial Custom Programs

Scroll Prev Top Next More

Custom programs stored on the codec are simple to load and dial from the codec front panel.



1.Press the HOME Home_button button to return to the Home screen.

2.Use the navigation buttons to select Programs and press the Ok_button button.



Programs-Home_screen



3.Use the navigation buttons to select a program and press the Ok_button button to load it.



Programs-Select_program



4.Navigate to the Connections screen and press the CONNECT Connect_button button to make a connection.

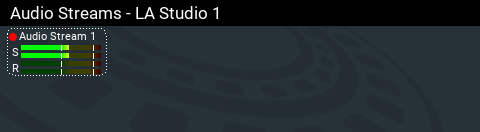

Audio_Streams-1_x_stereo_not_connected



5.A dialog appears during the connection process with connection details displayed.



Editing the IP Address or ISDN Number

It is possible to edit the IP address of a destination or the ISDN number for ISDN calls.



1.Press the HOME Home_button button to return to the Home screen.

2.Use the navigation buttons to select Connections and press the Ok_button button.

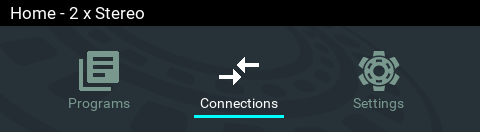

Home_screen



3.Select a connection and press the Ok_button button.

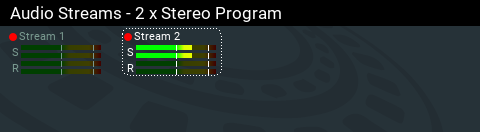

Connections-stream2



4.Press the Ok_button button to edit the destination address/number.

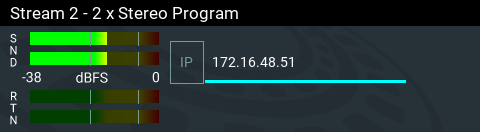

Connections-stream2IP_address



5.Use the onscreen keypad to edit the dial string, then press the Ok_button button to save it.

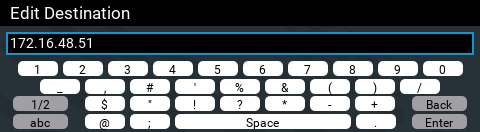

Connections-stream2IP_address2



6.Press the CONNECT Connect_button button to make a connection.
