Product |
Feature |
Notification |
Gateway 4 |
Control Port GPIOs |
Supports 8 control port inputs and 8 opto-isolated outputs via a single DB25 CONTROL PORT I/O connectors |
Gateway 8/16 |
Control Port GPIOs |
Supports 16 control port inputs and 16 opto-isolated outputs via dual DB25 CONTROL PORT I/O connectors |

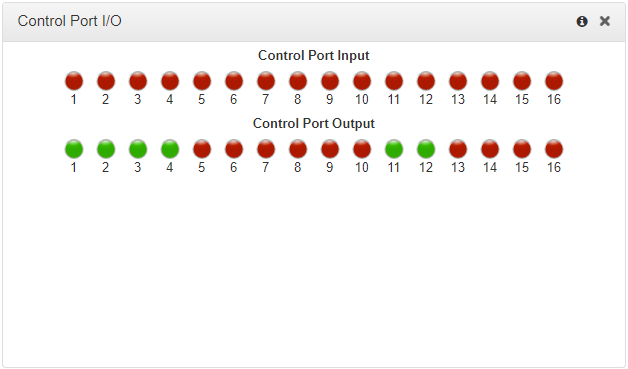

Monitor the status of control port inputs and opto-isolated outputs using the Control Port I/O panel.
1.Open the Toolbox HTML5 Web-GUI and click Control in the Menu Bar, then click Control Port I/O to display this panel.
2.Click on an output to change the state from Off to On, then click Save. Note: Input states cannot be changed.
