Product |
Feature |
Notification |
Gateway 4 |
PPM Meters |
8 PPMs on front panel display 4 channel inputs/outputs or encoders/decoders |
Gateway 4 |
Web-GUI PPMs Panel |
Capable of monitoring 4 inputs, 4 outputs, 4 encoders, 4 decoders, and headphone output simultaneously |
Gateway 8/16 |
PPM Meters |
Gateway 8 has 8 PPMs on codec front panel capable of monitoring 8 inputs, 8 outputs, 8 encoders, 8 decoders; Gateway 16 capable of monitoring 16 inputs, 16 outputs, 16 encoders or 16 decoders |
Gateway 8/16 |
Web-GUI PPMs Panel |
Gateway 8 capable of monitoring 8 inputs, 8 outputs, 8 encoders, 8 decoders and headphone output simultaneously; Gateway 16 capable of monitoring 16 inputs, 16 outputs, 16 encoders, 16 decoders, and headphone output simultaneously. |
The PPMs panel is able to monitor incoming and outgoing audio streams in the codec.

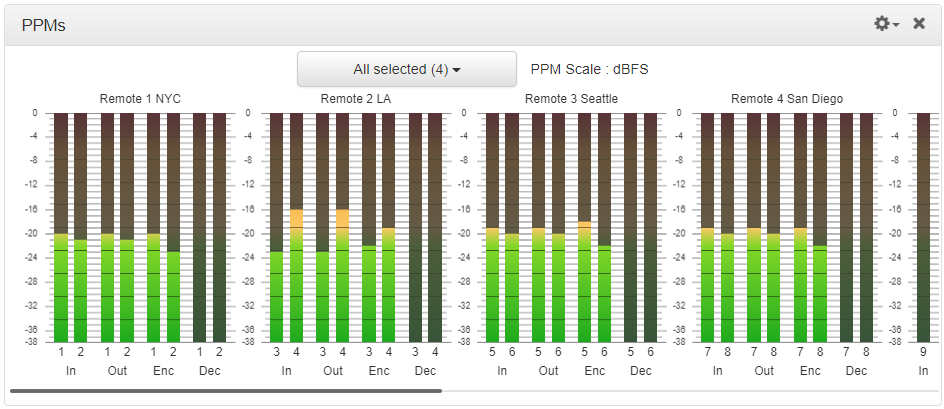

PPMs grouped by stream and identified by Stream Name

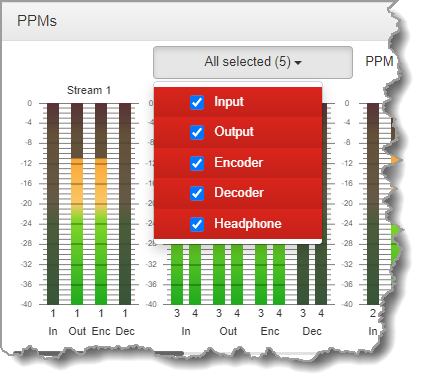

Click the drop-down PPM selector arrow to select whether the panel will display PPMs for:
•Inputs
•Outputs
•Encoders
•Decoders
•Headphone (output)
Select the check-boxes to select or deselect the PPMs displayed for each audio stream.
Click the Options menu in the panel to choose whether PPMs are grouped by stream or by type.
PPMs grouped by type appear as follows:
AoIP Stream PPMs
PPMs for AoIP (e.g. AES67, ST 2110-30, Livewire+, RAVENNA) streams are displayed in the Destinations panel and Sources panel in the Toolbox HTML5 Web-GUI and the AoIP Web-GUI. For more details please download the AoIP User Manual.

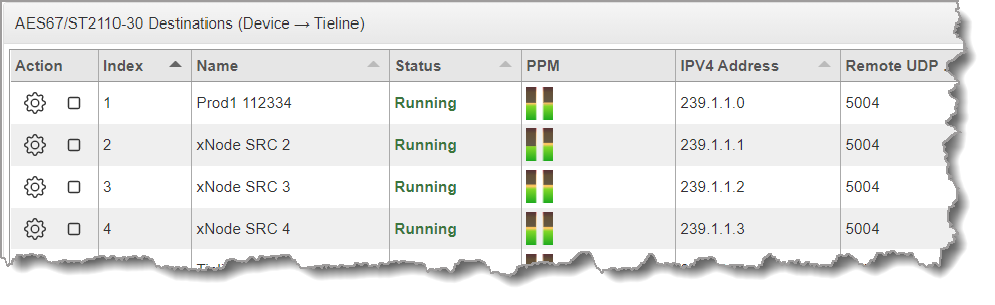

Toolbox Destinations panel displaying incoming codec audio

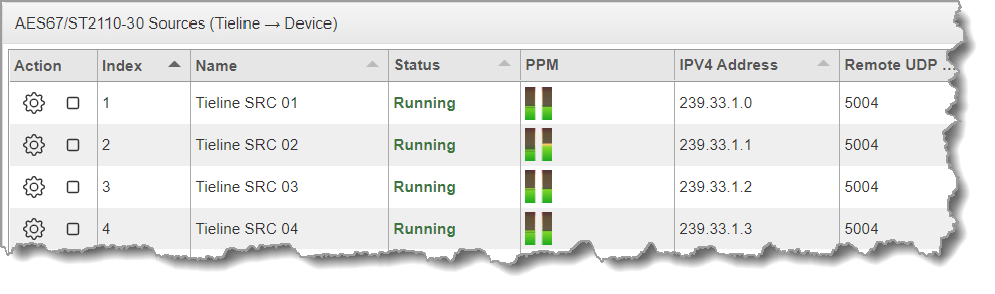

Toolbox Sources panel displaying outgoing codec audio
|
Important Note: PPMs on the AoIP Destinations panel are inactive if the Digital Input Type in the Audio Options panel is not set to Audio over IP and the corresponding Inputs panel input Type is not set as Digital. |
