In some situations when multiple interfaces are connected to the codec it may be necessary to select the preference for interfaces used to connect to the internet. For example, when using DDNS services. Or perhaps where the default setting is LAN1, however this may be connected to a closed network and LAN2 is the interface connected to a WAN, i.e. the internet. To adjust the default settings:
1.Press the SETTINGS
button.

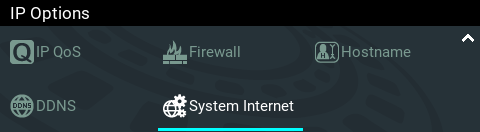

2.Use the navigation buttons to select IP Options and press the
button.
3.Navigate to System Internet and press the button.

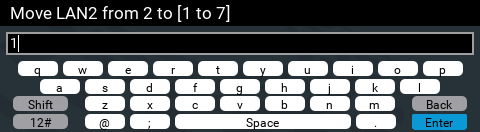

4.Navigate to an interface and press the button to adjust the numeric order as required. Then navigate to Enter on the screen and press the button. In the following example LAN 2 has been selected as the main interface to use when connecting to the internet.

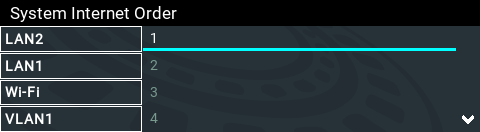

5.The new setting is reflected in the adjusted interface order.
|
Important Notes: •The System Internet setting is only related to internet connectivity. It is not related to the IP Via Setup for IP streaming interfaces. •If interface 1 is not connected to the internet, the codec will attempt to use interface 2 and other interfaces thereafter to access the internet. |
