ViA User Manual v2.0

Important Notes: Before you commence program configuration please note:

•When an announcer presses an input's TB CUE button, audio is routed to the IFB audio stream encoder and outgoing audio is simultaneously monitored in the right side of the selected input's headphone output. Return IFB audio is also audible in the right side of the headphones. For more info see Cue and Talkback Operation.

•The auxiliary input is used by default for the IFB communications channel in Merlin codecs. In Merlin PLUS codecs the auxiliary input and XLR input 3 are mixed together by default for 1 x Mono/Stereo Peer-to-Peer + IFB programs.

•You cannot edit a program when it is currently loaded in the codec.

•You can lock a loaded custom program in a codec to ensure the currently loaded program cannot be unloaded by a codec dialing in with a different type of program.

•Some drop-down menus and settings may be greyed out intentionally depending on features available and the transport selected (e.g. IP or ISDN).

•It is possible to save a program at several points throughout the program wizard and use default settings to save configuration time.

•Failover and SmartStream PLUS redundant streaming are not available with SIP or sessionless IP connections.

•POTS is not supported for stereo audio stream connections.

•To learn more about programs see the section titled Load, Connect and Manage Programs.

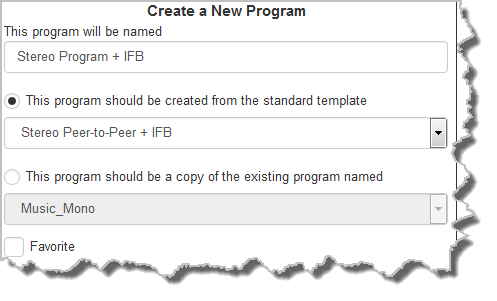

Important Note: When you decide to use an existing program as a template, the new program inherits all the settings of the template program and you can adjust these settings as required by continuing through the program wizard.

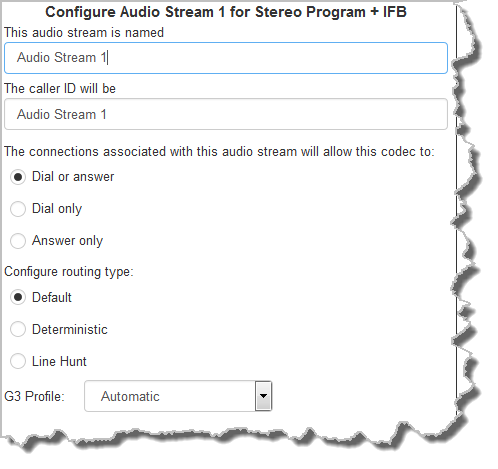

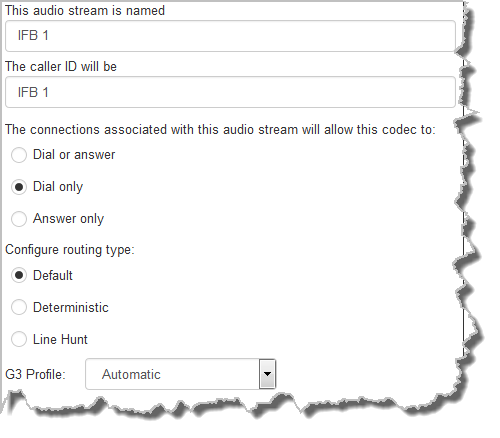

Routing Type Options:

Default

No Dial Route or Answer Route is configured. An incoming call will be routed to an audio stream on a first-come, first-served basis in a multi-stream program. Note: By default IP streams are routed using audio ports.

Deterministic

Select a Dial Route or Answer Route to configure deterministic routing of multiple audio streams using transports like ISDN or POTS. Use of Dial and Answer Routes is not necessary over IP. See Configuring ISDN Answering or Configuring POTS Answering for more information.

Line Hunt

Create line hunt groups for multiple incoming callers on a first come, first served basis. This is ideal for separating groups of inputs and outputs between different studios or stations. See Line Hunt Call Answering for more information.

Important Note: The G3 profile setting supports maintaining specific G3 codec settings when answering a call from a G5 codec.

1.Auto: The codec will dial the G3 codec and connect in mono or stereo. This is overridden in a Merlin or Merlin PLUS codec when a G3 Main + IFB use-case is configured.

2.Dual Program: This allows the codec to dial a G3 codec with a Dual Program profile loaded and support two simultaneous mono connections.

3.Runtime: The G3 codec will retain runtime settings when answering a call from a G5 codec.

4.Custom: The G3 codec will load a specified profile, e.g. profile 6, which is the first custom profile number.

Important Note: See RS232 Data Configuration for detailed information on RS232 data and see Enabling Relays and RS232 Data for more information on relay operations.

For IP connections configure the IP address, ports, and then specify which streaming interface is used to dial this connection, e.g. Primary (port LAN1) or Secondary (port LAN2). Note: By default Any will select LAN1 if it is available and LAN2 if it is unavailable.

Click Next Stream to configure the first audio stream with default algorithm, jitter and FEC settings which are physically entered in the codec. Alternatively, click Next to specify individual algorithm, jitter buffer and FEC settings and configure a failover connection or SmartStream PLUS for this audio stream (recommended).

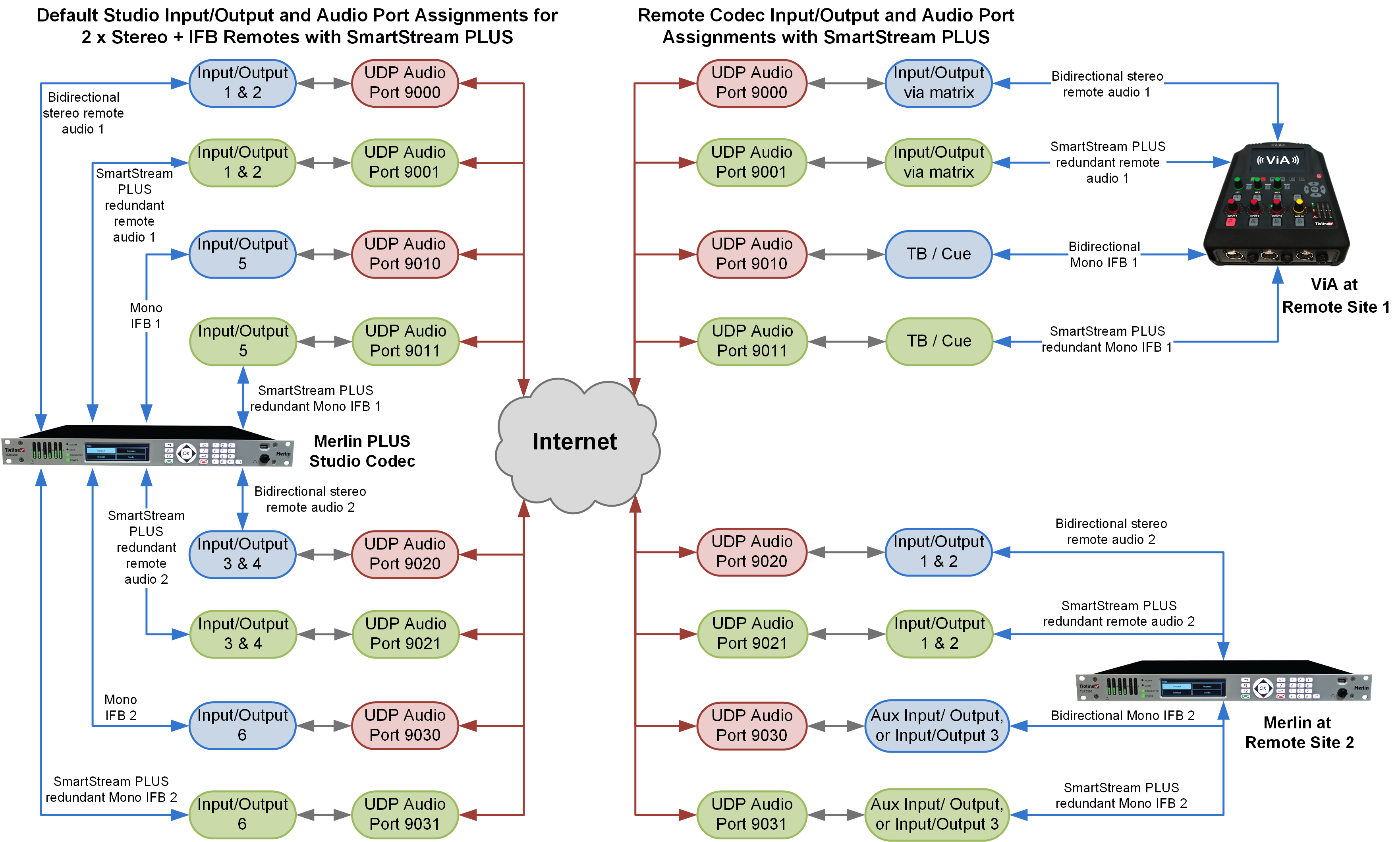

Note: If you connect multiple remote codecs simultaneously to a Merlin PLUS codec at the studio (when creating 2 x Mono or Stereo Peer-to-Peer + IFB connections), use Remote Audio Port 9020 to configure the second mono/stereo dialing connection at the studio. Mono or stereo program audio over this audio stream connection will be routed via audio inputs/outputs 3 and 4 on the studio Merlin PLUS codec.

When adjusting encoding settings, click the drop-down arrows on the right-hand side of each text box to adjust the Encoding, Sample rate and Bit rate options.

For IP connections click to configure:

•Auto Jitter Adapt and the preferred auto jitter setting using the drop-down arrow for Buffer priority. It is also possible to configure the Minimum depth and Maximum depth of jitter over the connection. See Configuring the Jitter Buffer for more details.

•Alternatively, select a Fixed Buffer Level and enter the Jitter Depth, which must be between 12ms and 5000ms depending on the algorithm you select.

•Local and Remote FEC settings if required.

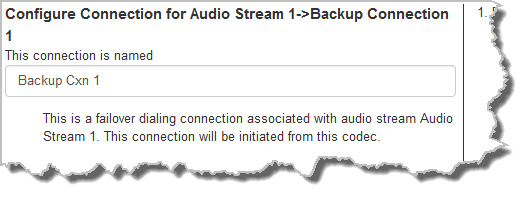

Click the check-box to select Enable Redundant SmartStream PLUS and configure dual redundant IP streaming. Alternatively, click Next to configure Auto Reconnect or a failover connection, whereby the alternative connection is dialed if the primary connection fails.

By default, primary IP streaming is via LAN1. To achieve the maximum level of redundancy select Secondary to configure redundant streaming from the secondary IP port LAN2. The redundant stream uses Remote Audio Port 9001 by default and the Local Audio Port allocated is Automatic. Note: Automatic indicates that the codec will arbitrarily allocate the local port value and send this information to the codec to which you are dialing.

Important Note:  Dual SmartStream PLUS redundant streaming over two IP interfaces mitigates lost packets on either link and will provide IP network backup if an IP link is lost. To learn more about SmartStream PLUS redundant IP streaming see http://www.tieline.com/Transports/SmartStream-IP

For ISDN connections enter a number and select which B channel to use. Select the Enable bonded connections check-box to configure and bond multiple B channels.

Next, click Save Program to save the program with default algorithm settings, or click Next to specify a different algorithm and configure a backup connection if required. (recommended).

Dialing settings for this ISDN audio stream are now complete.

Select POTS Codec in the Mode drop-down menu to encode/decode using POTS, or select Analog Phone to configure a standard analog phone call, then click Next.

Next, enter the phone number of the codec or device you want to dial. Next, click Save Program to save the program with default settings, or click Next to specify algorithm settings and configure a backup connection if required (recommended).

Dialing configuration settings for this POTS audio stream are now complete.

Important Note: When Auto Reconnect is enabled, the dialing codec will continue to attempt a connection with the remote codec until Disconnect is pressed either on the dialing codec's keypad, or in the Web-GUI.

Screen Display

Description

1

Threshold

The percentage of lost data measured during a given time frame

2

Time Frame

The time frame against which lost data is measured

3

Keep Alive

The keep connection alive time before failing over to a backup connection; Tieline RTP pings every second to confirm connectivity

4

Failback Parameters

Select the check-box to fail back to a higher priority connection

5

Stable Time

The amount of time a primary connection must remain stable before attempting to fail back from the backup connection

6

Maximum Retries

The maximum number of fail back retries a codec can try before ending fail back attempts

7

Time Frame

The time frame used to measure the number of fail back retries attempted

Important Notes for Rules:

•Rules for connecting or disconnecting an audio stream are configured in the Program Manager panel. Rules for connecting or disconnecting a program are configured in the Rules panel. See Creating Rules for more information.

•A non-WheatNet-IP Tieline codec can be configured to trigger a logic IO in a Tieline WheatNet-IP codec. Up to 64 logic IOs are available in Genie Distribution and Merlin PLUS WheatNet-IP codecs, as well as 4 physical CONTROL PORT GPIOs.

•Connection-related rules are not displayed in Answer only programs.

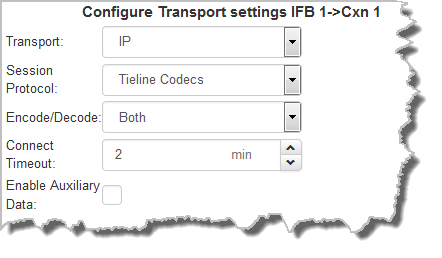

Important Note: See RS232 Data Configuration for detailed information on RS232 data and see Enabling Relays and RS232 Data for more information on relay operations.

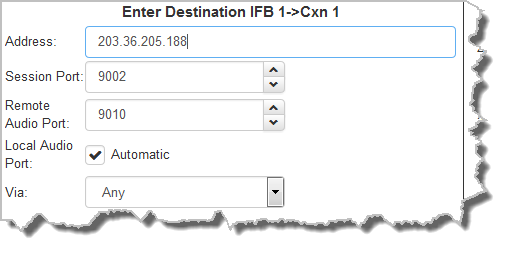

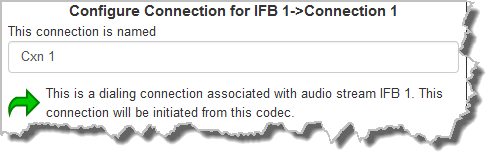

For IP connections configure the IP address, ports, and then specify which streaming interface is used to dial this connection, e.g. Primary (port LAN1) or Secondary (port LAN2). Note: By default Any will select LAN1 if it is available and LAN2 if it is unavailable.

Click Save Program to save the program with the default algorithm, jitter and FEC settings which are physically entered in the codec. Alternatively, click Next to specify individual algorithm, jitter buffer and FEC settings and configure a backup connection or SmartStream PLUS for this audio stream (recommended).

Note: The default Remote Audio Port is 9010 for this IP audio stream. If you connect multiple remote codecs simultaneously to a Merlin PLUS codec at the studio (when creating 2 x Mono or Stereo Peer-to-Peer + IFB connections), use Remote Audio Port 9030 to configure the second IFB connection at the studio. IFB audio over this audio stream connection will be routed via audio input/output 6 on the studio Merlin PLUS codec.

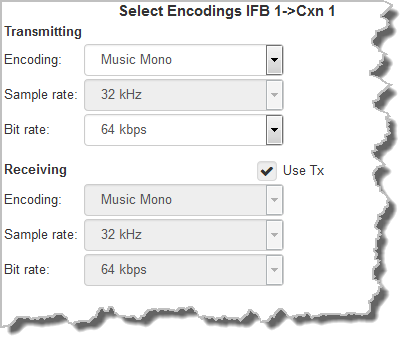

Click the drop-down arrows on the right-hand side of each text box to adjust the Encoding, Sample rate and Bit rate options.

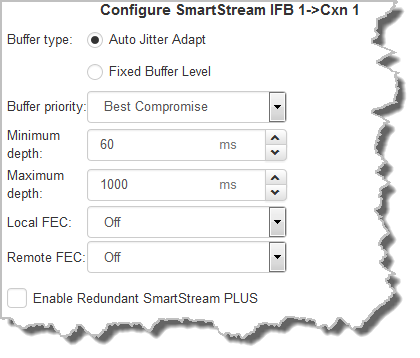

For IP connections click to configure:

•Auto Jitter Adapt and the preferred auto jitter setting using the drop-down arrow for Buffer priority. It is also possible to configure the Minimum depth and Maximum depth of jitter over the connection. See Configuring the Jitter Buffer for more details.

•Alternatively, select a Fixed Buffer Level and enter the Jitter Depth, which must be between 12ms and 5000ms depending on the algorithm you select.

•Local and Remote FEC settings if required.

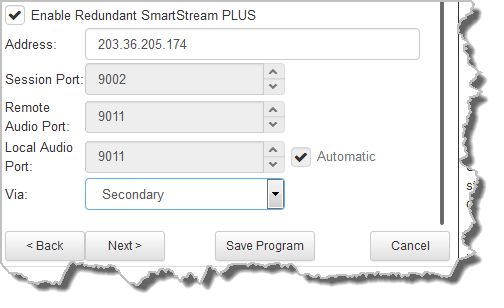

Click the check-box to select Enable Redundant SmartStream PLUS and configure dual Ethernet SmartStream IP streaming. Alternatively, click Next to configure Auto Reconnect or a failover connection, whereby the alternative connection is dialed if the primary connection fails.

By default, primary IP streaming is via LAN1. To achieve the maximum level of redundancy select Secondary to configure redundant streaming from the secondary IP port LAN2. The redundant stream uses Remote Audio Port 9011 by default, and provides automatic IP streaming backup in case one IP connection fails.

Important Note:  Dual SmartStream PLUS redundant streaming over both Ethernet ports mitigates lost packets on either link and will provide IP network backup if an IP link is lost. To learn more about SmartStream PLUS redundant IP streaming see http://www.tieline.com/Transports/SmartStream-IP

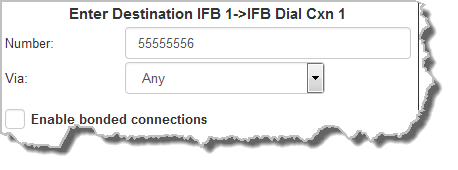

For ISDN connections enter a number and select which B channel to use. Select the Enable bonded connections check-box to configure and bond multiple B channels.

Next, click Save Program to save the program with default algorithm settings, or click Next to specify a different algorithm and configure a backup connection if required. (recommended). Dialing settings for this ISDN audio stream are now complete.

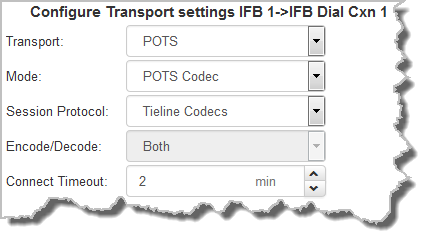

Select POTS Codec in the Mode drop-down menu to encode/decode using POTS, or select Analog Phone to configure a standard analog phone call, then click Next.

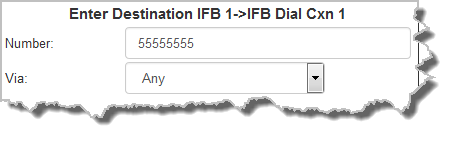

Next, enter the phone number of the codec or device you want to dial. Next, click Save Program to save the program with default settings, or click Next to specify algorithm settings and configure a backup connection if required (recommended).

Dialing configuration settings for this POTS audio stream are now complete.
